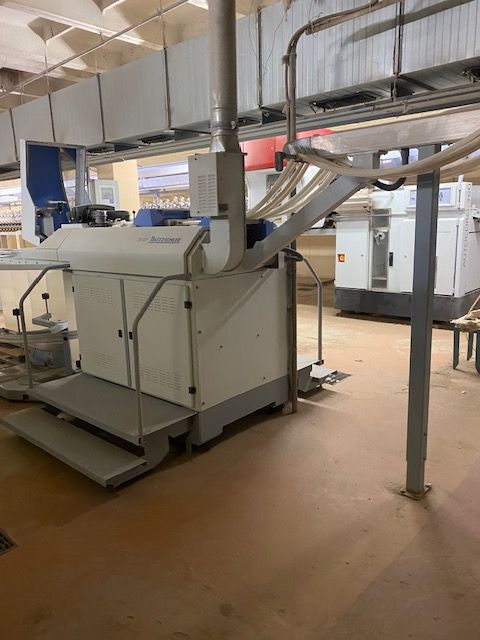

Schlafhorst, Trutzschler Small open end line

Line consists of
- complete blow room with bale opener Blendomat and multimixer MX 10 - 10 chambers) etc

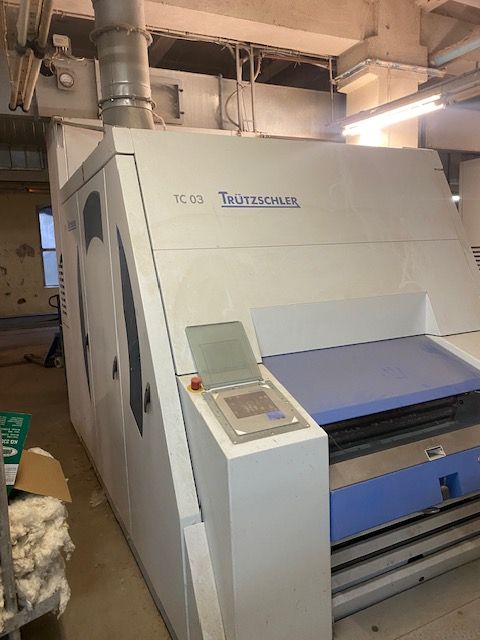

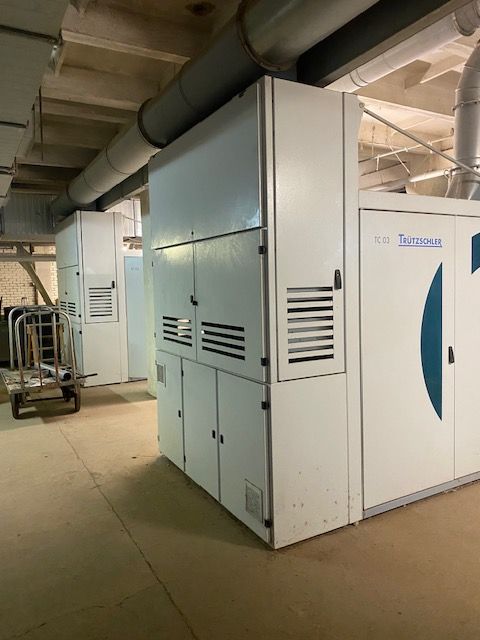

- 3 sets of cards TC03 with IDF
- 2 sets of draw frames TD03 with leveller
- 2 sets of Schlafhorst open end AUTOCORO 360
- Automatic rotor spinning Equipped with :
- IDS – Intelligent Drive System ( setting rotor speed, take -up tension, spinning vacuum, yarn twist and draft infinitely adjustable via frequency converter)
_ EVA – electronic vacuum adjustment electronically controlled 65-95 mbar
- Conveyor belt for removal of packages on each side
- Spinbox – Corobox SE 12 for rotor speeds 40.000 to 150.000 rpm as function of sliver and yarn count
- Twin disc bearings for yarns of up to 60 mm long natural and blends
- SDSI – single drive intake individual motor drive sliver intake for slivers up to 7 ktex ( nm 0.14 and drafts 20-450 folds
- Complete with opening rollers, rotors and navels
- COROMAT – 2 pcs with EIS event identification system, yarn piecing and doffing
- Cleaning head for mechanical and pneumatic cleaning of rotors, spin box, navel and doff tube
- Laser light bariier to control rotor speed and piecing cycle – piecing tester
- SRZ winding units for cylinder CoroPack packages for compact yarn up to 300 mm dia
- Max take up speed 220m/min at 30 degree angle
- Length measuring system for yarn packages
- COROLAB XQ Yarn monitoring system.
