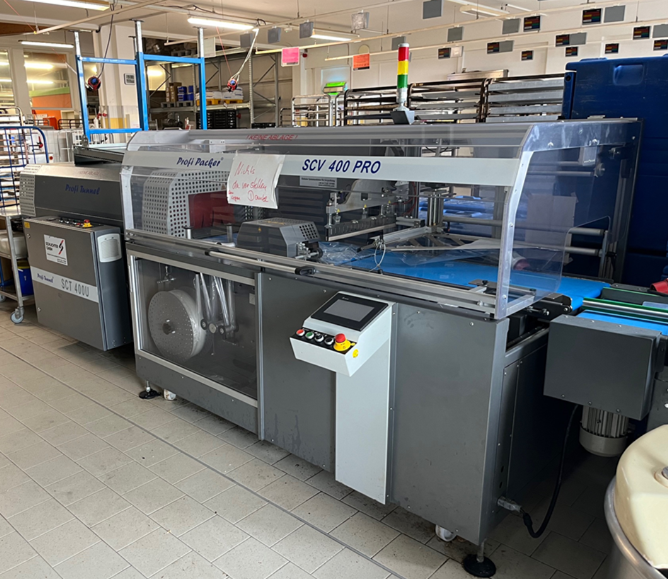

Schlichter SCV 400 Pro / SCT 400 U

Silicone square profile 15 x 20 mm – 550 mm for SCV 400 PRO series
Timing belt, 26 mm wide for SCV series – 2 pieces
Self-adhesive Teflon tape (80 mm wide / 0.13 mm thick / 2 m long)
Self-adhesive Teflon tape (14 mm wide / 0.13 mm thick / 30 m long)

Films – can be included:

Small format: 250 mm / 250 mm – 2 rolls
Medium format: 350 mm / 350 mm – 6 rolls
Large format: 550 mm / 550 mm – 2 rolls


SCV 400 Pro dimensions (LxWxH)
approx. 2,120 x 1,400 x 1,950 mm
Total dimensions with two tables
(L) 6 m x (W) 1,22 m
Working height
860 + 100 mm
Power supply
400 V, 3 PH, 50 Hz
Connected load
3.7 kW
Compressed air connection
min. 6 bar (OD 10 mm)
Operating side
left
Paint finish
metallic gray + light gray RAL 7035
Longitudinal welding
continuous
Transport speed
min. 10 m/min, max. 30 m/min
Film roll core diameter
76 mm
Welding die width
530 mm
Max. roll outer diameter
300 mm
Max. film roll width
600 mm
Film thickness
10 mm to 80 mm
Output per minute
up to approx. 60 cycles
