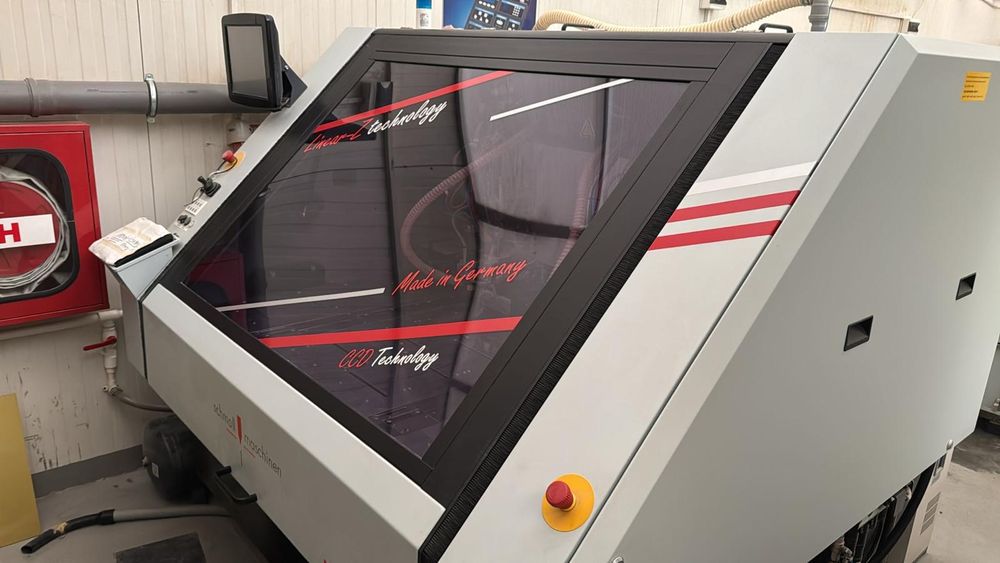

Schmoll LM2

2-spindle drilling and milling system with CCD camera
High-end system for small series production

Condition
First installed: January 2023
Only 781 production hours

Panel size
656 mm x 714 mm / 25.8″ x 28.1″

Drive technology
Linear motor in XYZ
90 m/min in XY
25 m/min in Z / Z-axis – stroke 30 mm
Linear Z-axis adjustable depth milling and deep drilling
Milling with CBD (contact bit detection) and a second measuring system
Drilling with CBD (contact bit detection) and a second measuring system

Spindle technology
A variety of spindles can be installed
Drilling/milling spindle D1331-26/36 installed
20000 – 125,000 rpm
Standard hold-down device

Tool clamping
Adjustable clamping from 3 mm to 5 mm
2x110 Euro tool cassettes can be used (with and without ring)

Additional features
CCD camera for recording outer layers at one station
Drill breakage monitoring
Laser station for tool measurement

Software
Linux-based: S50
