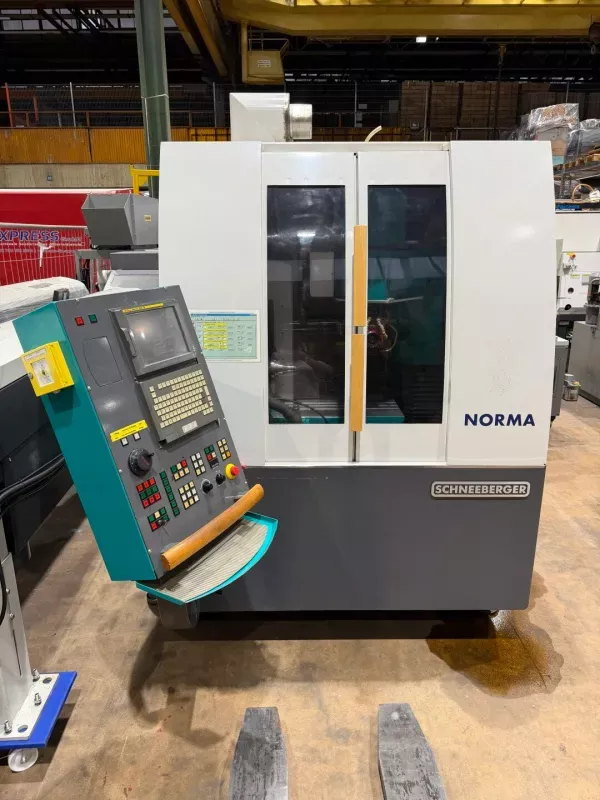

Schneeberger NORMA CFG 5 Axis

X-axis travel: 380 mm
Y-axis travel: 280 mm
Z-axis travel: 280 mm
A-axis grinding head rotation: 360°
C-axis tool rotation: 340°
C-axis spindle resolution: 0.001°
Control: GE Fanuc Series 16-M
Tool holder: HSK 50
Grinding wheel diameter: 50–200 mm
Grinding spindle speed: 0–9000 rpm
Spindle power: 7.5 kW
Hydraulic system: 6 bar
Connection: 3×400 V / 50 Hz
Total power requirement: 33 kVA
Max operating current: 3×40 A
Machine weight: approx. 5500 kg
Machine length: 1930 mm
Machine width: 1590 mm
Machine height: 2250 mm
Accessories: various grinding wheel holders and tool holders
