1/1

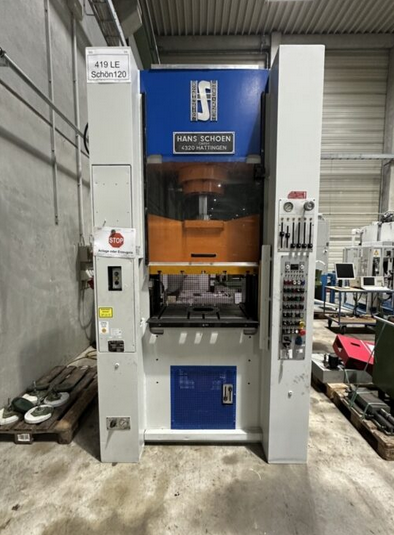

Schoen SH/LF 120/15 120
Ref :
2798863-3-AW
Condition :
Used
Manufacturer :
Schoen
Model :
SH/LF 120/15
Pressure :
120
Year(s) :
1983
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press force: 120 / 15 t
Distance between columns: 860 mm
Stroke: 170 mm
Table size: 860 x 600 mm
Daylight: 350 mm
Maximum distance table to ram: 520 mm
Ram head dimensions: 860 x 600 mm
Hole in table: 200 x 140 mm
Table height above floor: 850 mm
Total power requirement: 25 kW
Machine weight: 7.5 t
Machine dimensions: 2.3 x 1.7 x 3.4 m
Features
Maximum ram pressure: 120 kN
Maximum pull-out pressure: 15 kN
Sick light curtain
Safety distance: 180 mm
Maximum overrun: 15 mm
