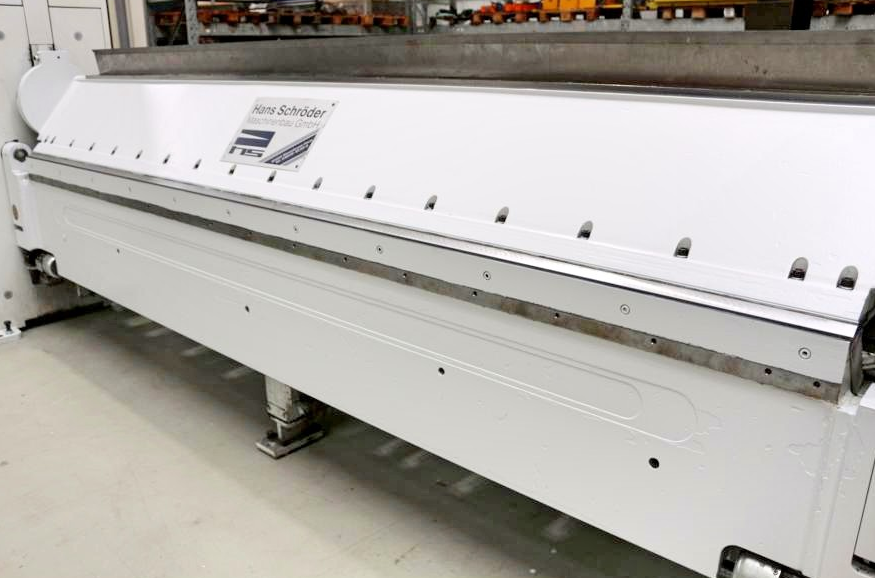

Schroeder MPB 3200/2.0

Sheet width: 3220 mm
Plate thickness (steel): 2.0 mm
Plate thickness (stainless): 1.0 mm
Upper clamping bar adjustment: 160 mm
Adjustment speed: 100 mm/sec
Folding beam adjustment: 80 mm
Bending speed: 120°/sec
Backgauge adjustment range: 10–1000 mm
Backgauge speed: 300 mm/sec
Compressed air: 6.0 bar
Work height max.: 869 mm
Control: POS 2000
Total power requirement: 10.4 kW
Voltage: 400 V
Machine weight: 5950 kg
Machine dimensions (L×W×H): 4565 × 2950 × 2163 mm

CNC electromotive universal swing bending machine
High-precision mechanics with modern control technology
Suitable for individual and series production
Torsion-resistant welded construction
Rotating upper beam with 2 tool stations (sharp and goosefoot rails)
Automatic tool changing system
Control panel front right with color display and USB interface
Automatic cutting calculation
Material and tool library
Bending simulation
Windows XP operating system
Servo-inverter-controlled drives for bending, upper jaw, and backgauge
CNC electromotorized lower jaw adjustment
CNC electromotorized backgauge
Rear sheet metal support surface
Freely movable double foot switch
Operating instructions
30° upper tool sharpening rail
Split upper tool gouge rail set
2 bending rails
