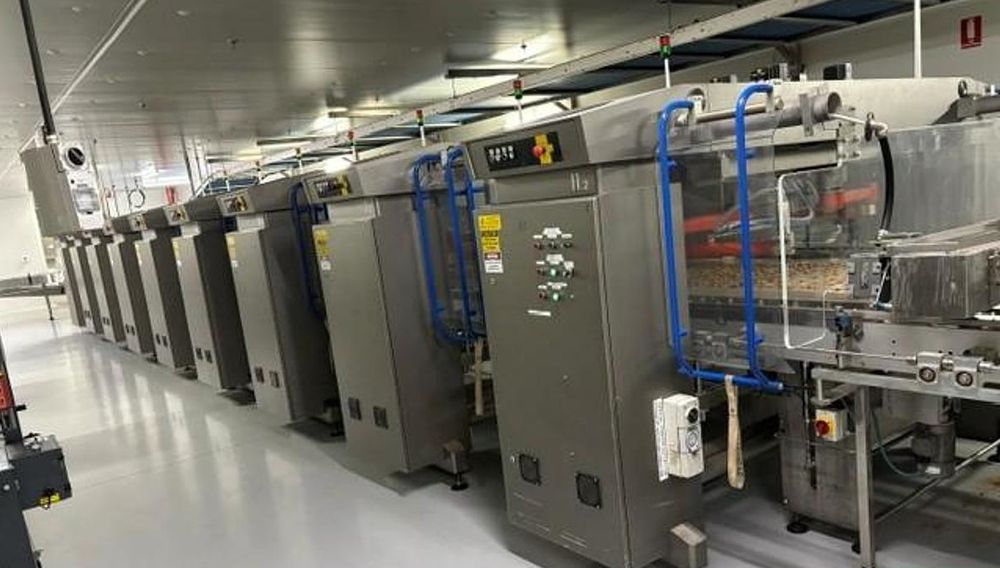

Schubert Kekse BISCUIT PACKING LINE

16-Robots, 8 x Stations

It has been used for picking product (biscuits or crackers) from 1200mm wide infeed conveyor and putting into trays

It has tray semesters to load trays onto the 2 tray conveyors, these are filled then exit to converge into the tray singulator station

Customer has many set up tools, 3-4 different styles of pick up tooling, manuals and spares, also the software and a laptop for programming, etc.

It was picking at around 600-800 pieces per minute, can be seen running if required

Has been recently packing biscuits and crackers, round, rectangle, oval etc.

Best used for pile pack, but also has capability to pack on edge. 45- 55mm round, 60mm x 75mm oval, 45mm x 75mm rectangle, 30mm x 55mm rectangle

PLC controlled, software available on a laptop for the SCHUBERT (Siemens PLC)

This all outfeeds filled trays in a single feed row into a Flowpack Wrapper

Manufactured by BOSCH
Model Linium 313
Year 2008

460Volts, 60Hz, 3phase
Automatically fed, box motion flow wrapping machine

Flowpack has dual roll auto splice, auto product feeder, print registration, date coder, gusseting, vacuum to remove excess air from packs

Wrapper uses Allen Bradley Controllogix, so software is available from Allen Bradley (subscription)

Was doing multiple pack sizes at around 60-90 per minute, shortest was 140mms, longest was 240mms
