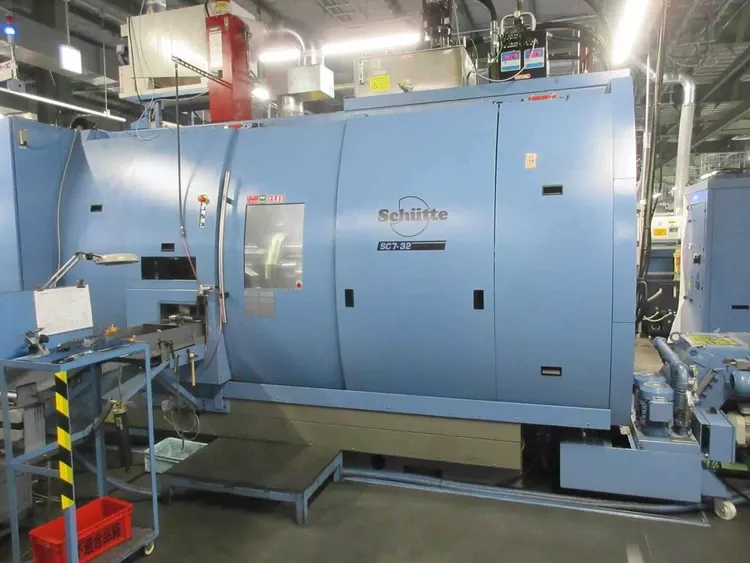

Schutte CNC CONTROL Variable Speed SC7-32 CNC MULTI-SPINDLE 6 main axes + 7 sub axes

Spindles: 6 (7 stations)
POS1: Work loading gun
POS3: Rotating spindle (removable rotating tool)
POS4: Work unloading
POS5: Sub spindle (indexing spindle)
POS6: Workpiece discharge system (conveyor and discharge chute)
Maximum spindle speed: 8000 min⁻¹
QC collet chuck: HAINBUCH

POS1 Spindle: 2-axis controlled external HSK40
POS1 Arm Loader: 1-single-face loader, 2-gripper head
POS2 Spindle: 1-fixed HSK40, 2-rotating HSK32
POS2 Loader: 1-2.CAPT C4
POS3 Spindle: 1-rotating spindle HSK40
POS3 Loader: 1-2.CAPT C4
POS4 Spindle: 2-fixed spindle HSK40
POS4 Loader: 1-2.CAPT C4
POS5 Spindle: 2-rotating HSK32
POS5 Loader: 1-2.CAPT C4
POS6 Ejector: 2-CAPT C5
Spindles, tooling, fixed collet chucks, indicators, Sky Vision, stoppers

Oil Chiller: HYDAC RFCS-G7-58000-W-L-R24-4-1
Refrigerant: R407C
Coolant Tank: KNOLL VRF500/2650 (50μ filter)
Coolant Pump: 3 systems (3 bar, 30 bar, 60 bar)
Chip Conveyor: KNOLL 450 S-2/380

Weight: 17,500 kg
Power Supply: 3-phase 480V, 60Hz, 91A

Special Features: Unconnected power safety transformer (200V→480V/60Hz)
Transformer for coolant tank (200V→480V/60Hz)
Automatic startup unit
Hydraulics: ASYMA solenoid valves
6 main axes + 7 sub axes (POS7 back spindle, collet, work ejector)
POS1 work loading magazine
Front cover modification for short work attachment
Work supply equipment
POS4 work reverse-holding & turret function
POS4, POS6 main collet open/close mechanism
Rear work ejection function (conveyor, ejection hand)
8-channel electrical tool breakage detection system (ARTIS)
Main unit isolation transformer
Chiller/coolant tank transformer
Reinforcement seal types, dedicated paint, automatic fire extinguisher
Control panel electrical I/O

POS1 Tool Post: 1-2 fixed holder HSK40 / POS1 cross: 1-rotation, 2-gripper hand
POS2 Tool Post: 1-HSK40 fixed, 2-HSK32 rotation / POS2 cross: 1-rotation, 2-CAPT C4
POS3 Tool Post: 1-2 fixed holder HSK40 / POS3 cross: 1-rotation, 2-CAPT C4
POS4 Tool Post: Work holding removal chuck / POS4 cross: 1-grip, 2-CAPT C4
POS5 Tool Post: 1-HSK40 fixed, 2-HSK32 rotation / POS5 cross: 1-rotation, 2-CAPT C4
POS6 Cross: 1-rotation, 2-CAPT C5
POS7 Tool Post: Back spindle, pull-type collet chuck, injector, stopper
