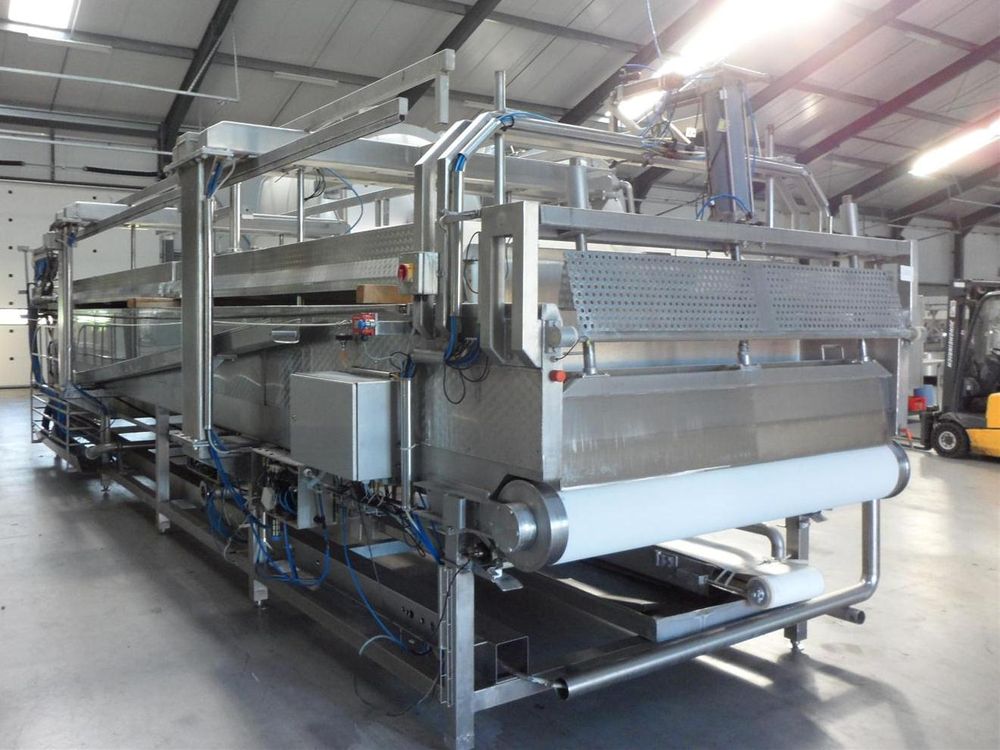

Schwarte draining vat

Draining bed inside Width : 1920 x 7720 mm
Inside dimensions appr. (w x l).: 1920 x 9000 mm
Outside dimensions appr. (w x l): 2900 x 11000 mm x 2850
The bottom of the draining vat is transportable and made of special plastic. The bottom is transported by a driving.
Filling the draining vat is done with a driven filling car which moves from one end to the other end over an overheas construction. O this way the vat is filled equal.
The longitudinal cutting is a removable rigid knife
The cross-cutting automatically by a Moving up and down cross knife
The pieces of cheese are transported automatically to the form filling
Dimensions of the pieces: 430 x 255 x 132 mm, 4 pieces you in width and 27 pcs in the long No. of pieces: 108
The pre – pressing with the Stainless Steel press pates is done with two pneumatic cylinders
The pre – pressing plate moves up and down
The whey is drained throug 3 drain pipes of DN 65, which are divided over the length
The vat is CIP cleanable
The vat is complete with controlling for pre-press pressure moving the filling car and transporting the bottom.
