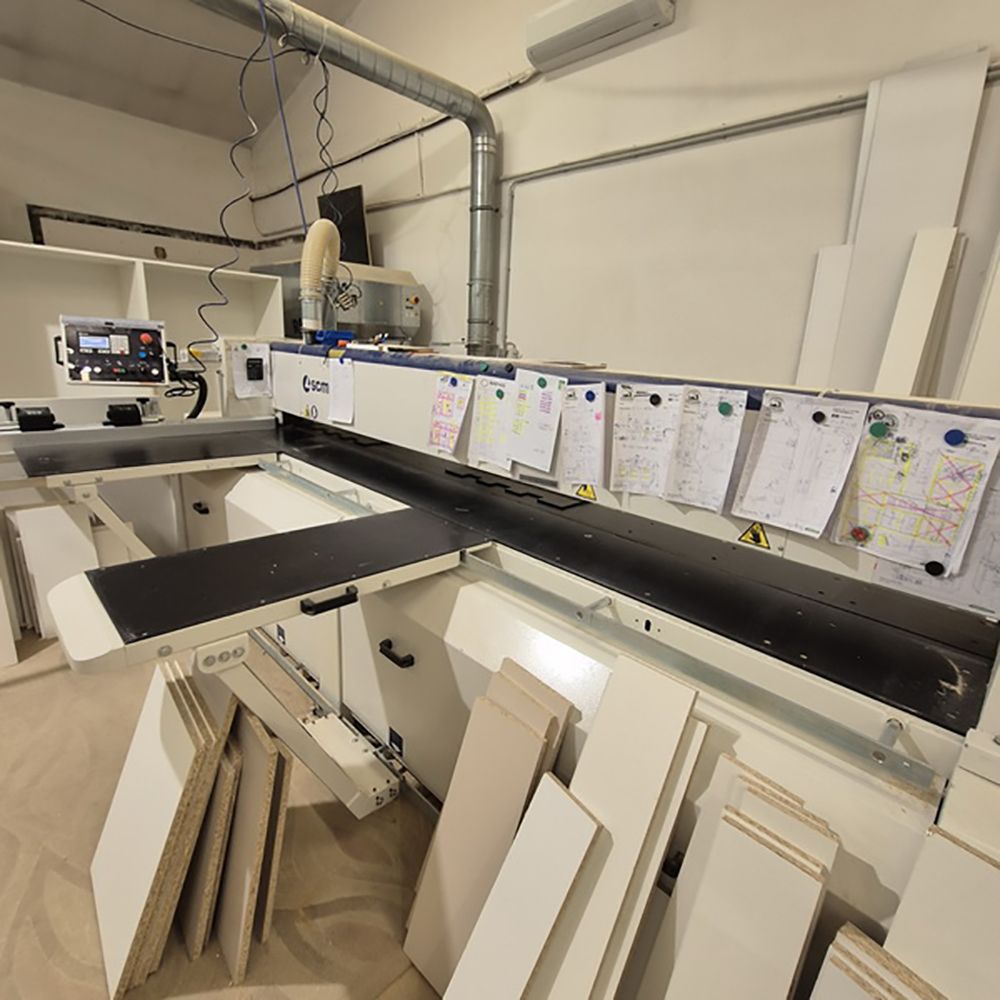

SCM Class PX 350 i

Technical specifications :
– Max. saw carriage travel [mm] 3200
– Saw blade tilt 0 ÷ 46°
– Max. saw blade diameter (cutting) [mm] 50
– Max. saw blade diameter (milling + cutting) [mm] 300
– Max. cutting height (D350) from the table at 90°/45° [mm] 105/72
– Max. cutting height (D300) from the table at 90°/45° [mm] 80/50
– Saw blade speed [rpm] 4000
– Cutting width rear fence [mm] 1300

Other technical specifications:
– Three-phase motor 7 kW 50Hz
– Extraction hood diameter [mm] 120 (1) – 100 (2)
– Dimensions [mm] L 4459 W 3196 H 1368

Extendable rip fence up to 3200 mm with digital displays, mounted on a wide fixed table for panel support (600 x 1350 mm from the cutting line).
Includes:
3 stops with independent electronic digital displays with magnetic strip recording system and LCD display.
Extendable roller up to 1900 mm total length.
In absolutely mint condition.
