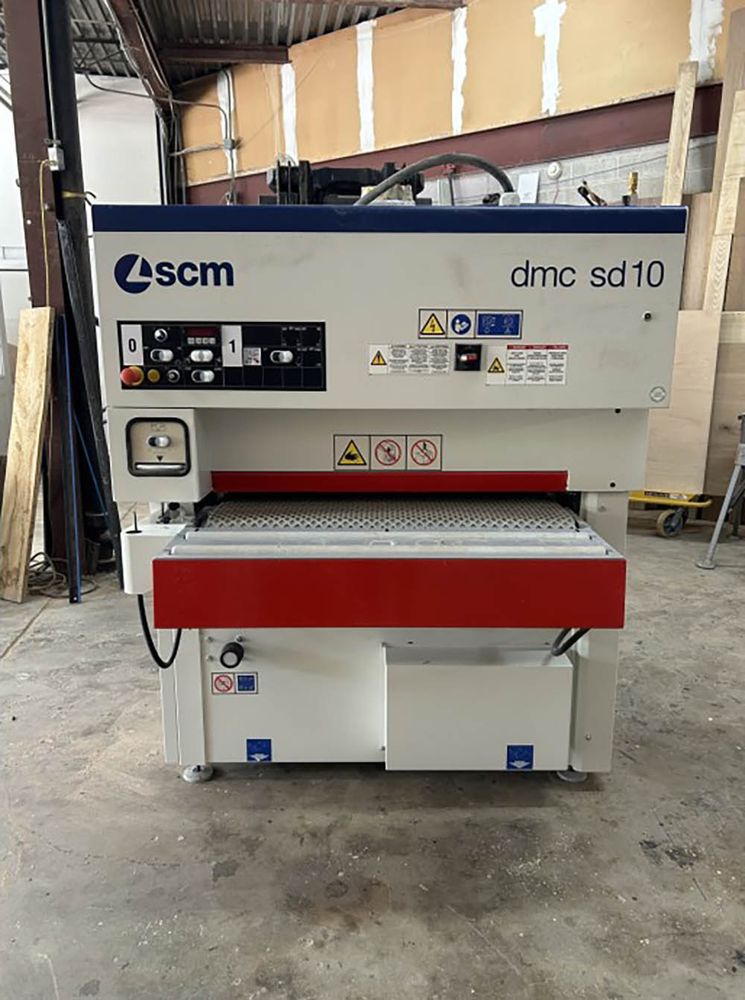

SCM DMC SD 10 CS 95

Used Single Head Wide Belt Sander
• Rubber coated pressing rollers before and after sanding unit.
• Additional flexible hold-down plate before sanding unit.
• .7 HP 2 speed feed unit. Feed speeds set at 15 and 30 feet per minute.
• Electronic digital thickness readout of work table position.
• Electronic positioning of the work table.
• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability.
• Accurate and reliable electronic tracking of abrasive belt.
• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt.
• Front and rear emergency stop buttons.
• Automatic emergency stop of machine for:
• Sanding belt breaking, tensioning, over tracking.
• Opening of the access door to the operating groups.
• Absence of compressed air.
• Overload on main motors.
• Amperage meter for main motors allows maximum utilization of available horsepower.
• Main disconnect switch with the ability to be locked out by padlock.
• 50 shore, negative profile (waffle style) rubber feed mat.
• Infeed and Outfeed tables with 2 rollers each.
• Automatic table thickness device.

Working Unit Specifications:
• 1st Working Unit
• Working Unit Type: Combination Head:
• Motor Hp: 18 HP
• Motor Type: Single Speed
• Abrasive Belt Speed: 18 mps
• Drum Size: 120 mm (4.75")
• Drum Type: 85 Sh Rubber
• Platen Size: 50 mm (2")
• Platens Included: Two
• Abrasive Belt Length: 60"

Technical Specifications:
• Working Width 950 mm (37")
• Number of Heads Available 1
• Feed Motor .7 HP
• Feed Speed 15 or 30 fpm
• Maximum Work piece Thickness 160 mm (6.25")
• Minimum Work piece Length 12.5 inches
• Abrasive Belt Size 37" X 60"
• Compressed Air Requirements 6 Bar (88 PSI.)
• Dust Outlets 1 outlets @ 140 mm (5.5")
• Exhaust Requirements 900 CFM
• Power Requirements 54 amps @ 230 Volts/3 phase
