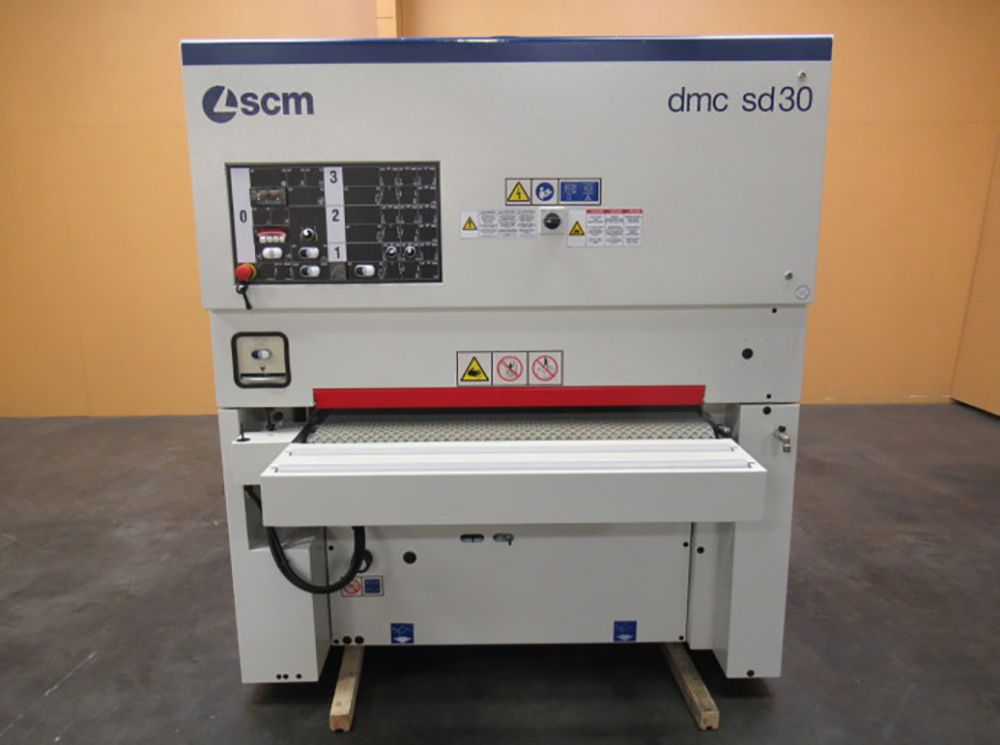

SCM DMC SD 30 CS 110

Used Wide Belt Sander.
Voltage: 230 V 3-Phase
Rubber coated pressing rollers before and after working unit
1 HP two speed feed unit. Feed speeds set at 15 or 30 feet per minute
Y-Delta two-stage reduced voltage starter on main motor
2 roller Infeed and outfeed table extensions
Automatic Electronic Table Positioning Device
Adjustable sanding drum and pad position for micro precision adjustment
Electronic digital thickness readout of work table position
Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
Electronic tracking of abrasive belt
Automatic feed mat tracking
Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
Front and rear emergency stop buttons

Automatic emergency stop of machine for:
Sanding belt breaking, tensioning, over tracking
Opening of the access door to the operating groups
Absence of compressed air
Overload on main motors

Amperage meter for main motors allows maximum utilization of available horsepower
Main disconnect switch with the ability to be locked out by padlock
In feed flexible steel hold down, and anti-kickback plate
50 shore, negative profile (waffle style) rubber feed mat
LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad
