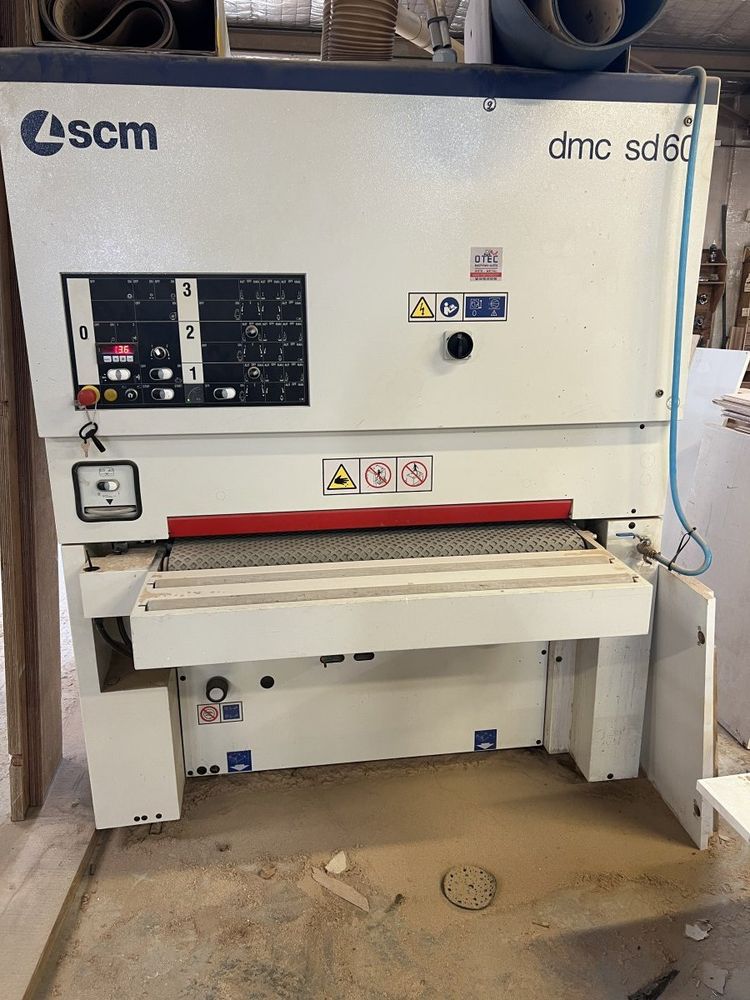

SCM DMC60 RR 110

Wide-Belt Sander
Condition: Used
Availability: In stock

Technical specifications:
Working width: 1,100 mm
Min./max. working thickness: 4 - 170 mm
Abrasive belt width: 1,115 mm
Abrasive belt length: 2,150 mm
Motor power (1st unit): 11 (15) kW (HP)
Motor power (2nd unit): 11 (15) kW (HP)
Conveyor belt feed speed: 4.5/9 m/min
Wide sanding belt: 1,100 mm
1st roller Ø160 mm (85 Sh) - 2nd roller Ø250 mm (45 Sh)
Front-mounted pneumatic on/off selector
Electronic belt centering and oscillation
Rubber conveyor belt (60 Sh) with automatic belt centering
Conveyor feed speed: 4.5 and 9 m/min
Front-mounted control panel
Motorized table lift/lower with digital display
Electronic working thickness positioner
Table equipped with 2 infeed rollers and 2 outfeed rollers
Working height: 4 to 170 mm
Main motor: 15 HP 3-phase - automatic start
2 feed speeds: 4.5 - 9 m/min
Variable feed speed: 4 to 18 m/min (optional)
Compressed air requirement: 2 m3/h at 6 bar
Belt dimensions: 1,115 x 2,150 mm
Dust extraction ports: 2 x Ø160 mm
