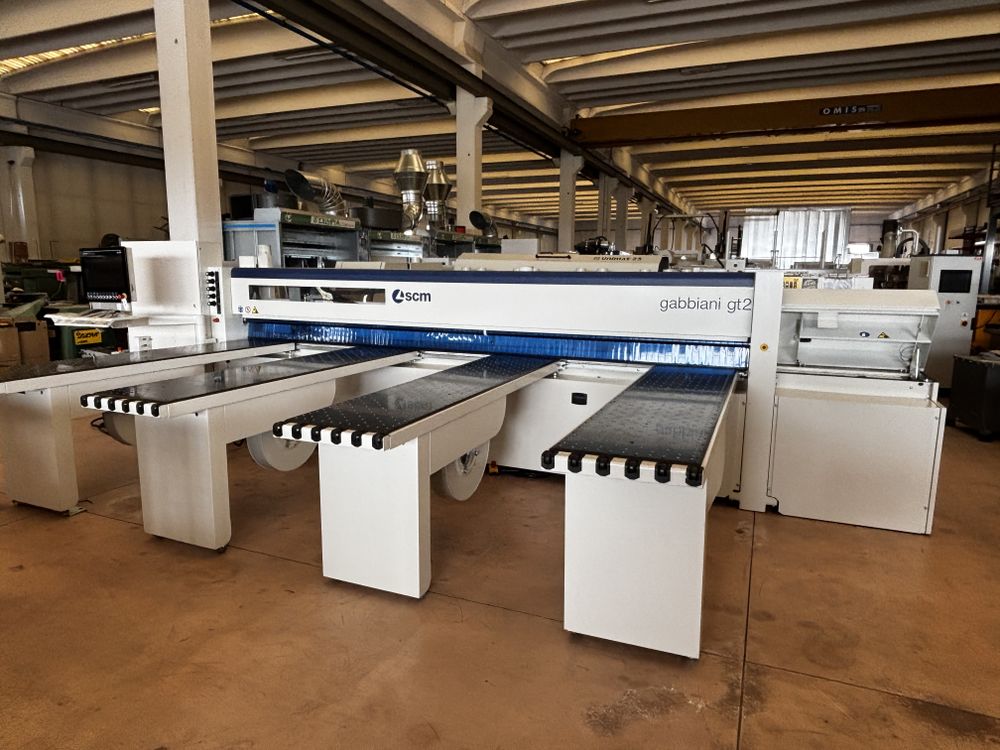

SCM Gabbiani gt2

GENERAL:
Blade projection 115 mm
Work surface height 950 mm
Max. clamp opening 110 mm
Total clamps 13

LOADING PLATFORM DIMENSIONS:
45 mm version 4500 x 2440 mm
CROSS-MEMBER LOADING PLATFORM SPECIFICATIONS - Standard
Max. stack height 600 mm
Max. load capacity 6500 kg
Ascent/descent speed 0.75 m/min
Min. loading dimensions 1500 x 600 mm
Max. Loading capacity 4500 x 2440 mm
Minimum panel thickness at loading 10 mm

AXIS SPEED:
Variable blade carriage speed 0 – 150 m/min
Variable pusher speed (**) 80 m/min

MAIN BLADE:
Motor power 7.5 kW
Rotation speed 3900 rpm
Blade diameter 400 mm
Blade shaft diameter 80 mm

SCORING BLADE:
Motor power 1.8 kW
Scoring blade diameter 200 mm
Scoring blade shaft diameter 80 mm
