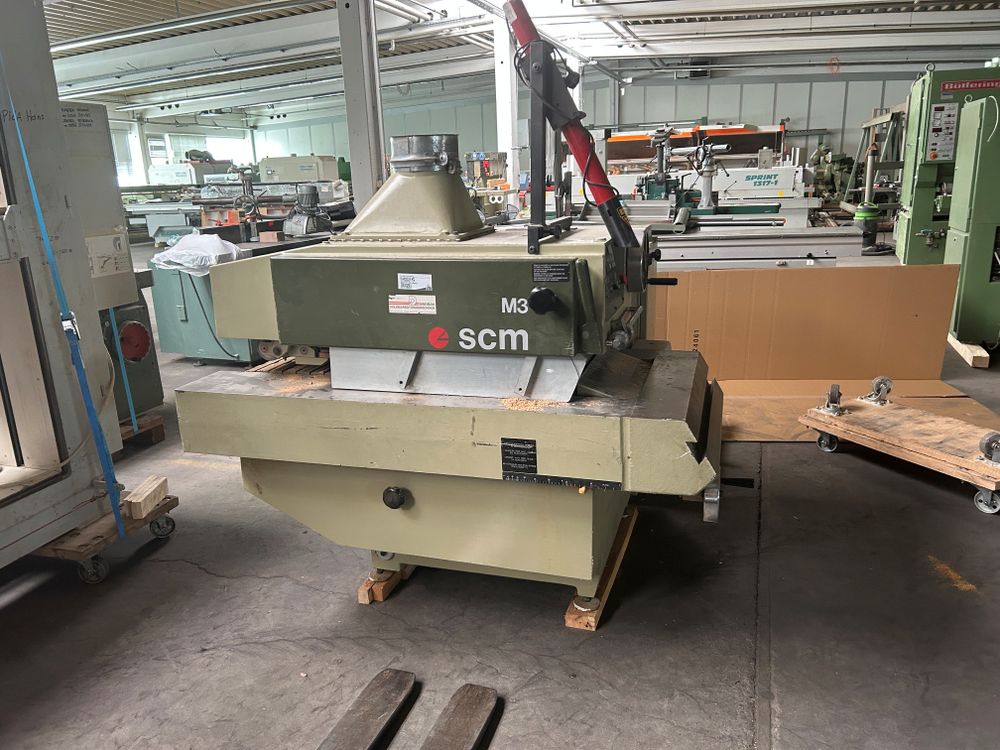

SCM M 3 Multi-blade circular saw

Used machine
Features and technical data:
High-performance multi-blade saw
Heavy cast iron construction
Solid transport chain consisting of directly connected precision links
Wear-resistant guide surfaces of the transport chain with extremely low coefficient of friction
Automatic chain lubrication
4-fold saw shaft bearing for maximum stability
Saw bushing with tapered seat and self-centering
4 pressure rollers for precise cuts, even with thin workpieces
4 rows of slitter and kickback fingers
Cutting height up to 110 mm with a 350 mm saw blade diameter
Minimum cutting length: 250 mm
Saw bushing clamping width: 300 mm
Minimum and maximum saw blade diameter: 200/350 mm
Saw shaft speed: 4200 rpm
Feed speed: 4-48 m/min
Transport chain width: 300 mm
Saw bushing diameter (with 2 keys): 20 x 5 mm) 70 mm
Worktable height 750 mm
Extraction port diameter 200 mm
Airflow at 25 m/sec 3500 m3/h
Motor 25 kW
Flow motor 1.1 kW with laser guide light
1800 kg
Noise emission 98.3 dB W (A) idle without extraction in operation 107.1 dB W (A)
Workplace-related emission value 81.8 dB W (A) idle without extraction
in operation 91.2 dB W (A)
