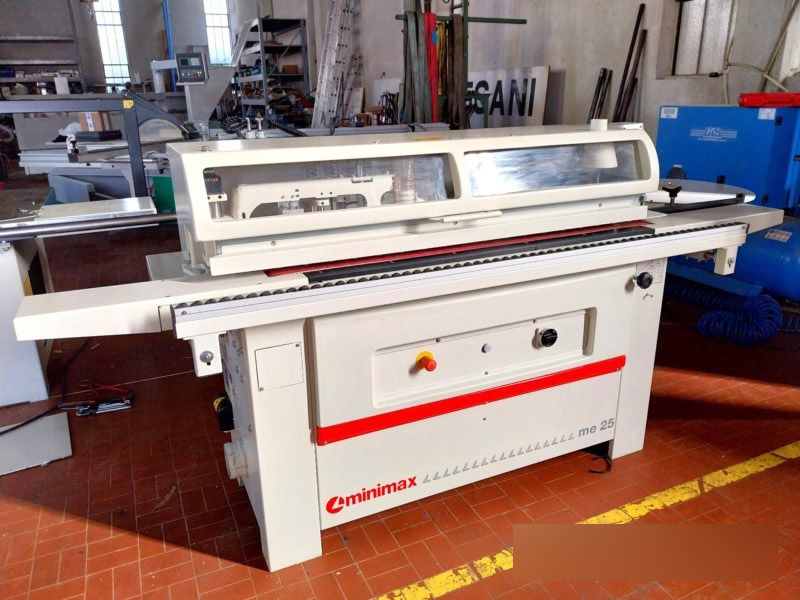

SCM ME 25

Automatic edge bander for joinery, furniture, custom-made furniture, panels, doors, kitchens and various – CE Standard
Technical data:
Thickness of roll edge 0,4–3 mm
Max edge thickness 5 mm
Min/max panel height 12/50 mm
Panel feed speed 7 mt/min
Work surface height 904 mm
Min panel length/width 190/65 mm
High-grip toothed feed belt
Panel support roller conveyor along the entire length of the machine

Composition:
Gluing unit: Glue tank capacity 1 kg – Motor power 0,18 Kw

End cutting unit:
Motor power 0,37 Kw
End trimming blade diameter 90 mm Z 20
Blade rotation speed 12000 rpm

Overlapping trimming unit:
Upper and lower motor power 0,75 Kw
Vidia cuttersn diameter 75 mm Z 4
Cutter rotation speed 12000 rpm

Edge scraper unit for finishing Pvc/Abs edges
Glue scraper unit for removing any excess glue
Suction inlet diameter 120 mm
Overall dimensions mm 1950 x 700 x 1250 h
Weight kg 430
