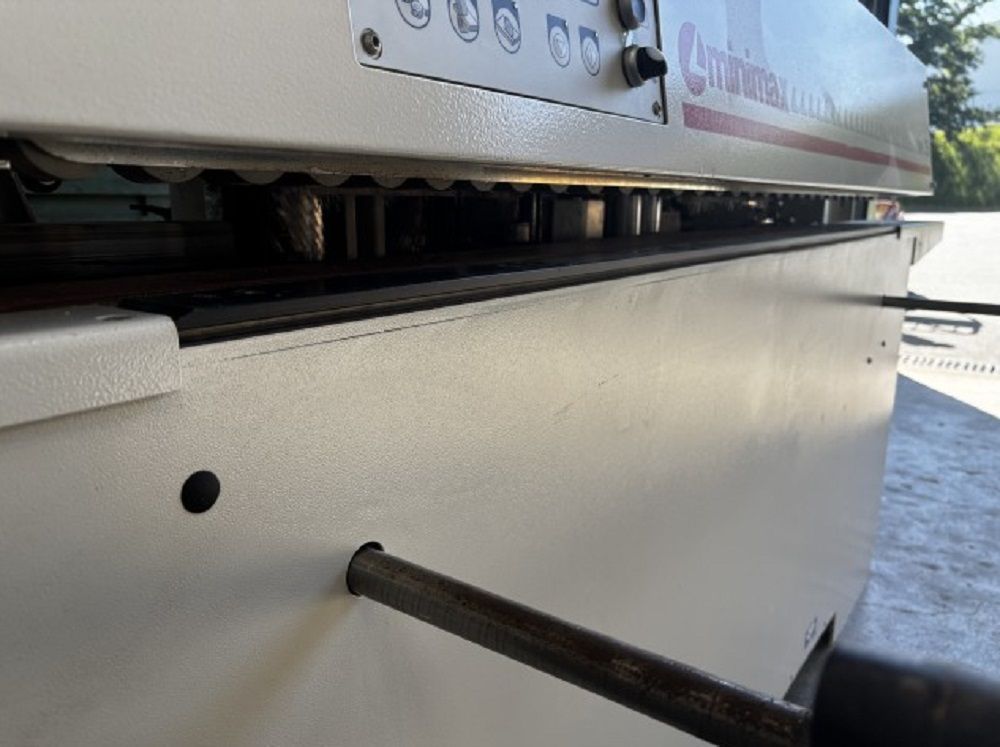

SCM ME35T

EDGE BANDER
MAKING CAPACITIES:
- Height (thickness) of the panel to be machined: 8 to 50 mm
- Minimum length of the panel to be machined: 190 mm
- Minimum width of the panel to be machined: 110 mm
- Edge thickness: 0.4 - 2 mm
- Maximum router pass clearance: 55 mm²
- Feed (feed speed): 7 m/min
- Gap between workpieces: 600 mm

MACHINE COMPOSITION:
- Feed table Ø700 mm usable
- Work table, front extension (length x width): x mm
Height at Work surface floor: 90 cm
- Belt conveyor
- Edge dressing (2 spindles) 8500 rpm
- Bin-type gluing unit
Pneumatic pre-cutting guillotine
Massaging (pressing) with 3 rollers, 1 of which is motorized
- End-cutting unit with 1 saw-mill Ø120 tilting at 0.5 rpm
- Top/bottom trimming unit - copying with pads
- Rounding unit
- Straight scrapers
- Manual positioning

OTHER FEATURES:
- Main power supply: 400V. 3-phase + N + T 50Hz
- Max. Installed Power IN A
- Drive motor: 0.55 kW
- Router motor: 2.2 kW
- Saw motor: 0.2 kW
- Trimming (milling) motors: 0.70 kW
- Pneumatic supply: 8 bar
Working pressure: 6.5 bar
- Vacuum: 2xØ80 mm + 3xØ60 mm
- CE marked
- Padlockable disconnect switch, Mushroom stops
Dimensions (LxWxH): 3400x1300x1700 mm
Weight: 542 kg
