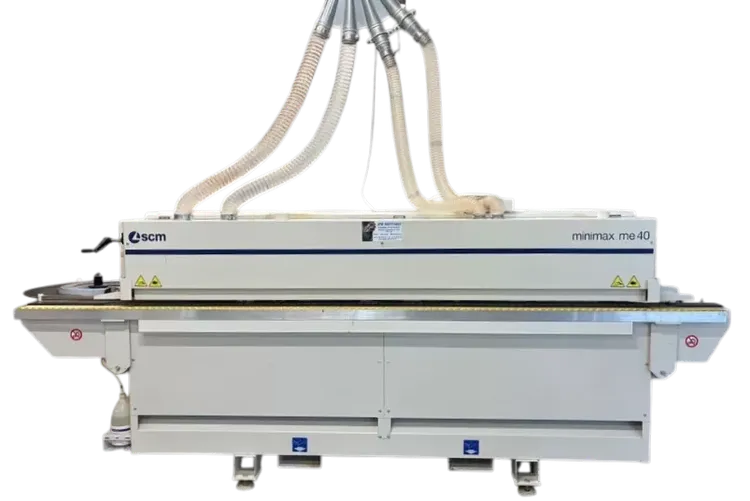

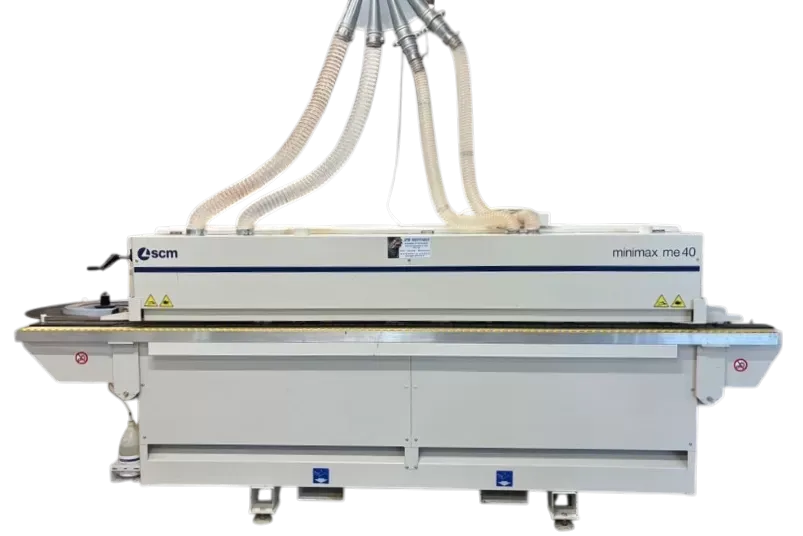

SCM ME40 TR

Edgebander/Gluer with Optional Spindle Moulder
MACHINING CAPABILITIES:
- Height (thickness) of the panel to be machined: 8 to 50 mm
- Minimum panel length to be machined: 190 mm
- Minimum panel width to be machined: 110 mm
- Edge banding thickness: max 5 mm in strips, 0.4-3 mm in rolls
- Edge width: panel thickness + 4 mm
(recommended excess)
- Maximum feed of spindle moulders 4mm
- Training (forward speed) 9 m/min
- Interval between parts: 750

MACHINE COMPONENTS:
- Reel tray Ø780 mm usable
- Work table, front extension (length x width): 3400x700 mm
Worktop height from floor: 90 cm
- Chain drive treadmill
- Rectifier group / Song trainers (2 tops)
- Preheating: Heating rule to be confirmed
- Gluing unit with interchangeable EVA glue tray
Pneumatic pre-cut guillotine
2-roller rolling (pressing)
- End-cutting unit with "ROUND" rounding group (to be confirmed)
- Flush trim unit with top/bottom copying and pad mounting, 1/4 round cutter
- Straight scrapers
Digital counters for adjustments (Siko type)

OTHER FEATURES:
- General power supply 400V. Three-phase + N + T 50Hz
- Maximum installed power IN 20 A
- Drive motor: 0.55 kW
- Spindle top motor: 3 kW
- Saw motor: 0.2 kW
- Flush trimming (milling) motors: 2 x 0.35kW
- Pneumatic supply: 8-10 bar
Working pressure: 6.5 bar
- Suction: manifold supplied with the machine, outlet Ø115 mm
- CE marking, Lockable disconnect switch, Emergency stop buttons

Dimensions (WxDxH): 3500x1500x1700 mm
Transport dimensions: 3500x1200x1400 mm
Weight: 844 kg
