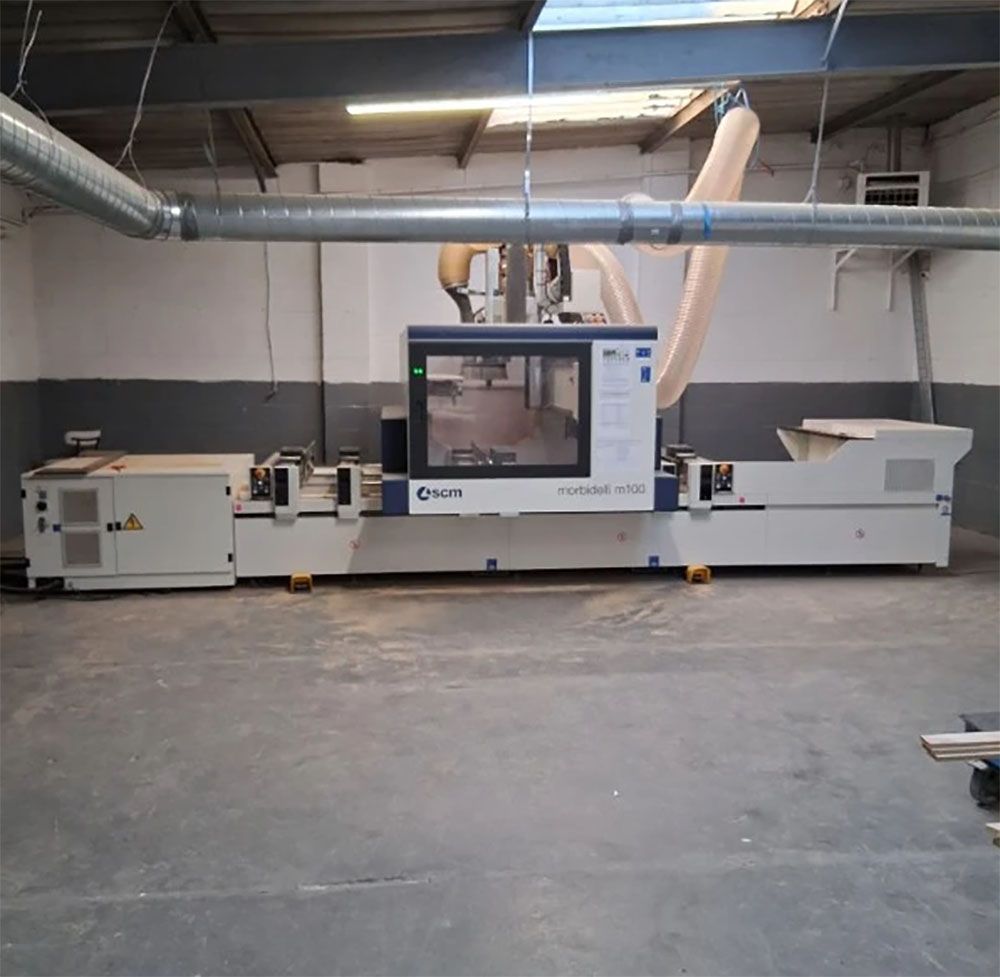

Morbidelli, SCM M100 3-Axis

3-Axis CNC Machining Centre
Generous working envelope — up to approximately 3110 mm (X) × 1320 mm (Y) × 180 mm (Z) (common configuration),
enabling processing of large panels and components
High-speed routing spindle — up to 24,000 rpm, delivering both high cutting rates
and fine surface finish for routing, profiling, shaping or milling operations.
Versatile tool management — automatic tool-changer c/w 12 rotary positions & 11 fixed positions
Integrated drilling unit — vertical and horizontal drilling spindles allow drilling, dowelling,
hinge-bore — ideal for furniture, doors, cabinets or frame-work.

Modular table system — works with configurable “pods” on a TV FLEX table: vacuum clamping
or mechanical supports adapt to various panel sizes and workpiece types.
Robust mechanical design — X/Y axes driven via rack & pinion with helical teeth and Z-axis on recirculating ball screw,
ensuring high acceleration/deceleration, smooth motion, and long-term precision.
Industrial-grade control & CAM support — operated using the integrated CNC control suite (e.g. “Xilog Maestro”),
enabling CAD/CAM based toolpath programming, nested-panel layouts, and efficient production cycles.
