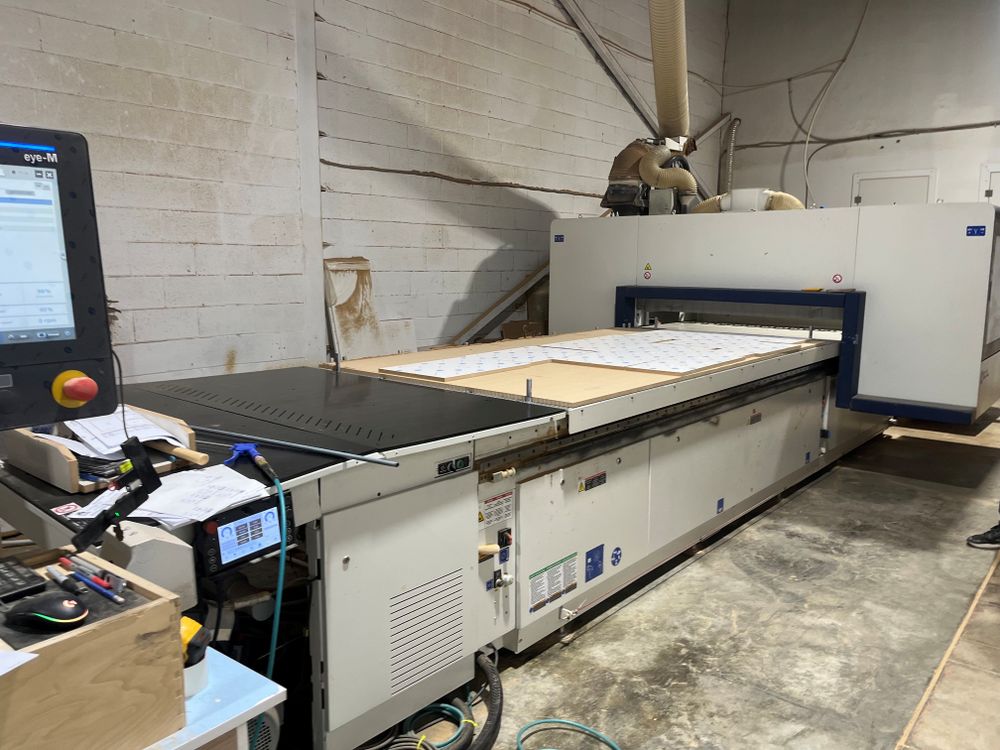

SCM Morbidelli X200

CNC Router – 5x10 Flat Table
Key Features :
5' x 10' flat table configuration (nesting capability)
14 kW (19 HP) HSK spindle with 24,000 RPM max speed
RO.AX drilling technology – high rigidity, low maintenance
16 vertical spindle drilling head (up to 8,000 RPM)
TRB14 14-position linear tool changer
Maestro CNC CAD/CAM software suite
Multi-zone vacuum table (8 zones) for efficient hold-down
Brushless servo axis drives for high precision and acceleration
Heavy-duty welded frame construction for stability and accuracy
Integrated dust extraction system with centralized hooding

Working Capacity / Material Specifications :
Work Table Size: 5' x 10' (1531 configuration)
Workpiece Processing:
Multi-zone vacuum hold-down (8 zones)
Suitable for nested sheet processing and individual part machining

Drilling Head:
16 vertical spindles
32 mm spacing
Max speed: up to 8,000 RPM

Routing / Spindle:
14 kW (19 HP) electrospindle
Speed range: 1,500 – 24,000 RPM

Tooling & Machining Capability :
Linear tool changer: 14 positions (TRB14)
Max tool diameter: up to 300 mm
Max tool weight: 8 kg
Supports routing, drilling, grooving, and contour machining
Full nesting capability with optimization software

Electrical Specifications
Voltage: 400 V
Phase: 3 Phase + Neutral (3 + N)
Frequency: 60 Hz
Current: 70.2 Amps
Short Circuit Rating (Icc): 5 kA

Vacuum & Dust Extraction :
Vacuum Pump: 250–300 m3/h system included
Multi-area vacuum table with automatic/manual zone control
Centralized dust extraction system with automatic valve control
Optimized airflow and reduced noise due to selective extraction zones

Software & Control System:
Maestro CNC CAD/CAM platform
3D programming environment for machining operations
Tool database and automatic toolpath management
Integrated nesting optimization (free-form + rectangular)
Real-time diagnostics, reporting, and machine monitoring
Remote service capability (TELESOLVE)

Machine Dimensions & Weight:
Weight: approx. 3,660 kg (8,068 lbs)
Heavy-duty base allows operation without anchoring to ground

Condition Notes :
Verry good mechanical and cosmetic condition
Fully operational and production-ready
Clean shop environment
