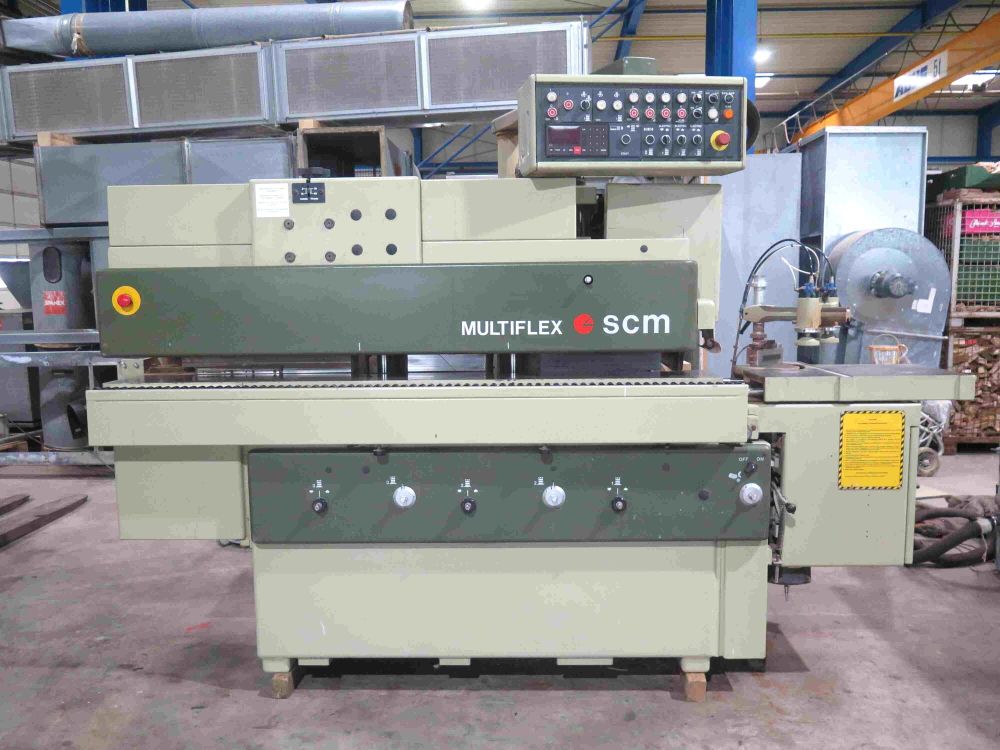

SCM MULTIFLEX C

Window and Door Manufacturing System
Components as follows:
Crosscut saw, motor power 3 kW
Slotting spindle, motor power 7.5 kW
Profile spindle, motor power 5.5 kW
Profile spindle, motor power 5.5 kW
Glazing bead saw, motor power 2.2 kW

Minimum workpiece width 35 mm, maximum workpiece width 140 mm
Milling spindle, diameter 50 mm
Maximum clamping length 320 mm
Feed speed 3-15 m/min. Feed motor 0.75 kW
Spindle diameter glass bead saw 25 mm

Swivel-mounted control panel with electronic control
Storage capacity of up to 100 programs
Height adjustment of the tenon and profile spindles is achieved via a 3-axis electronic positioning device
Automatic roller table with 2 speeds

Compact design
With extendable workpiece support
With workpiece return
Tool-free

Space requirement 3860 mm x 2900 mm x H 1900 mm
Weight approx. 2,600 kg
