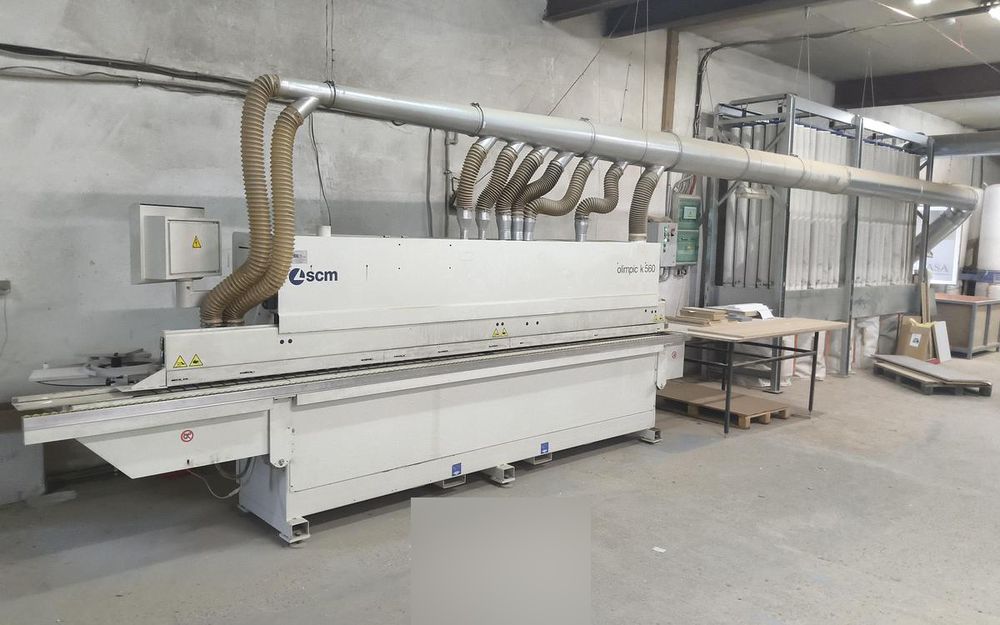

SCM Olimpic K 560

Automatic Edge Gluing
Complectation
Chain feed speed 12/18m/min
Edge thickness 0.4/3mm
EVA glue
Panel milling unit "RT-V"
Glue application unit "VC-S4.1"
Edge trimming unit "K-SEL"
Edge milling unit "R-K"
Edge corner rounding unit "ROUND X"
Edge scraping unit RAS-K
Polishing unit SP-V

Technical characteristic:
Conveyor speed (two speeds) m/min 12 - 18
Min / max part thickness mm 8 - 60
Thickness of glued wooden edge mm 0.4 - 6 (8mm HP composition)
Thickness of glued roll edge mm 0.4 - 3
Maximum area of ​​glued roll edge mm² 135
Diameter of reel support "plate" mm 780
Maximum overlap of glued edge, relative to the part mm 2+2
Minimum distance between transported parts mm 600
Minimum length of part (when the width of the part is min. 100 mm) mm 140
Minimum length of roll edge mm 180
Minimum length of wooden edge mm 220
Minimum width of the part (when the length of the part is min. 210 mm) mm 95 (60mm opc.)
Width of the extension support mm 560
Height of the worktable from the floor mm 900
Plate milling unit "RT-V"
Max. chip removal area mm2 55
Max. milling thickness mm 3
Min. / max. thickness of the part mm 8 - 45 (60mm opc.)
Motor power kW 2 x 1.5
Mill diameter mm 100
Mill height mm 49 (64mm opc.)
Tool rotation speed rpm 9000
