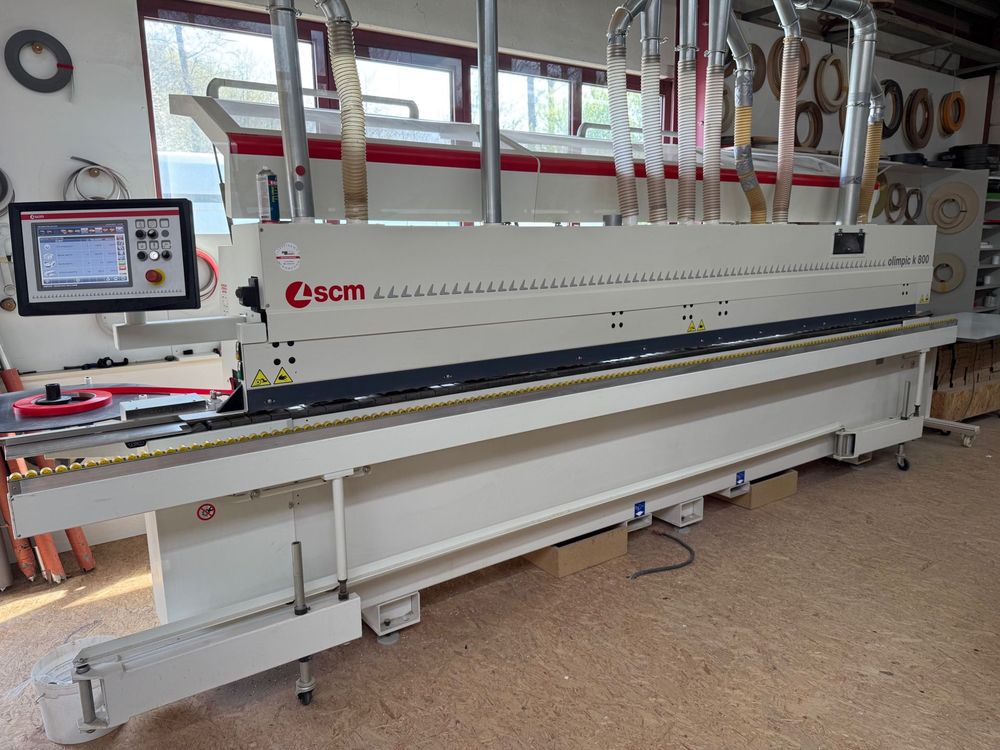

SCM Olimpic K 800
EUROPE (Western and Northern)
Technical Specifications :
Edge thickness: 0.4 to 8 mm
Max. gluing thickness for rolled edges: 3 mm
Feed speed: 12/18 m/min
Working height: 8 to 60 mm
Max. edge cut dimensions: 135 mm²
Turntable diameter: 780 mm
Max. oversize compared to panel thickness: 4 (2+2) mm
Min. panel width (with 210 mm min. length): 55 mm
Min. panel length (with 100 mm min. width)
- with strip or rolled edges max. 3 mm: 140 mm
- with solid wood edges: 200 mm
Min. distance between consecutive panels at 11 (16 m/min): 750 (850)
Standard Equipment:
- Pre-milling unit in the RT-E infeed
- VC-800 gluing station
- KSEL trimming unit
- RI/800 flush trimming unit, adjustable inclination
- ROUND K rounding unit
- RAS-V scraping unit
- 1/2 free space for surface scraper
- 1/2 free space for surface scraper, universal trimming unit, or buffing unit
- 1/2 free space for air jet unit
