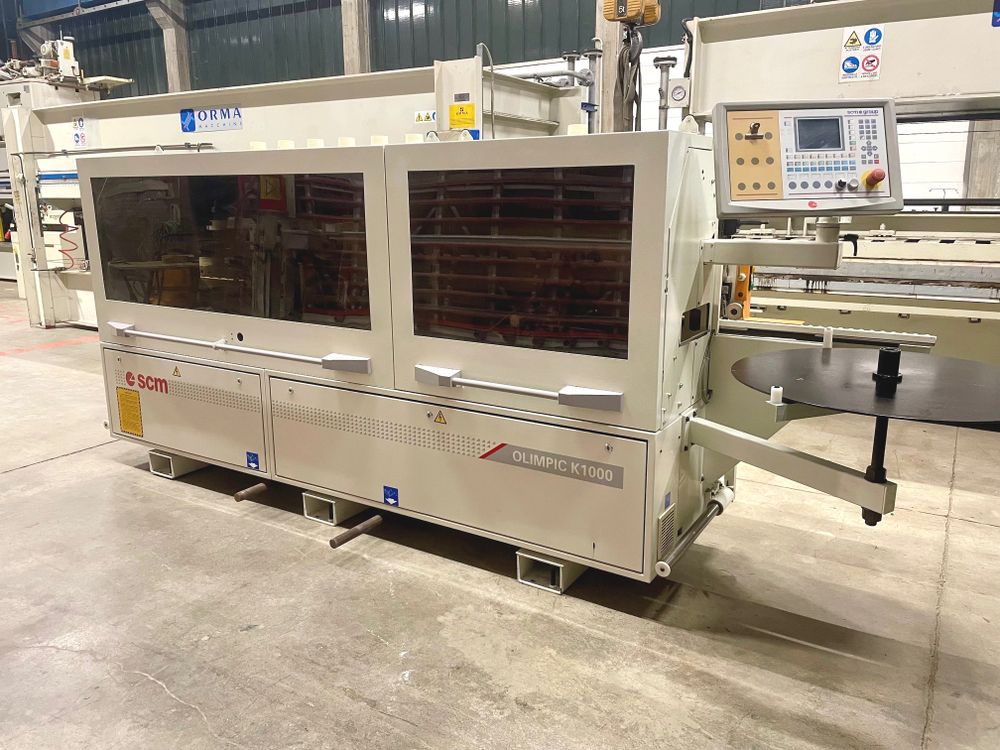

SCM OLIMPIC K1000

Used edgebander
control panel with membrane keyboard

Technical data:
Min. panel height 8 mm
Max. panel height 55 mm
Minimum thickness of the rolled edge 0.4 mm
Max. thickness of the roll edge 3 mm
Maximum thickness of wooden edge 12 mm

Composition:
Strip edge warehouse
Glue tank capacity 1,5 kg with independent motor
No. 4 counter-pressure rollers with pneumatic thrust and 1st roller with independent motor
Roll edge cutting shears
End trimming unit with 2 independent motors tiltable 0-15° – each KW 0,35 – 12.000 rpm
Overlapping trimming unit with 2 motors each KW 0,65 – 12.000 rpm – tools with reversible knives
Tiltable corner trimming unit for flat-edge and radius finishing; 2 motors each, 0,5 kW – 12.000 rpm, with electro-pneumatic positioning - tools with reversible knives
electro-pneumatic exclusion of the group
Glue scraper group
Machine length mm. 4310
CE
