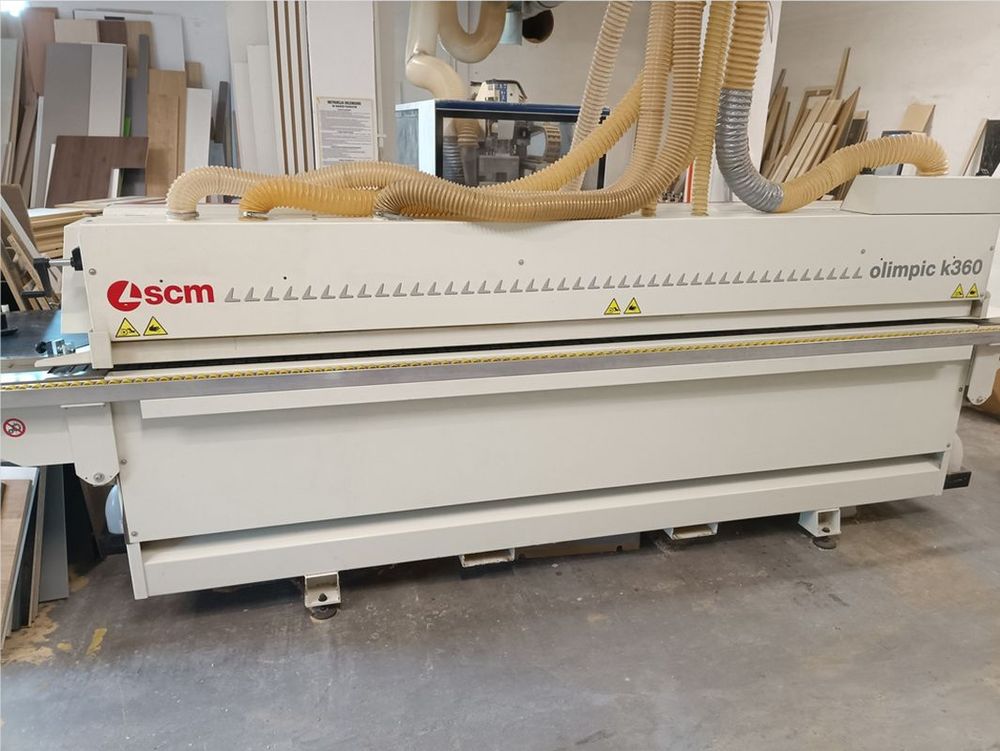

SCM Olimpic K360 T-ER1

Edge banding machine
- Feed speed: 11 m/min
- Edge thickness: 0,4 - 6 mm
- Control: SCM keypad panel with display
- Panel thickness: 8 - 60 mm
- Power supply: 400 V / 3~ / 50 Hz, 23 A
- Min. Workpiece: 140 × 90 mm

Aggregates
Pre-milling
- 2 counter-rotating diamond heads (up to 3 mm removal)

EVA glue unit
Pressure zone with driven roller + 2 pressure rollers
End-cutting unit K-2 (straight / bevel, automatic switching)

Top/bottom trimming
- flush, radius, chamfer

Corner rounding R1/R2
Profile + flat scrapers
Buffing unit
Anti-adhesive fluid system (2 fluids), edge roll feeder
