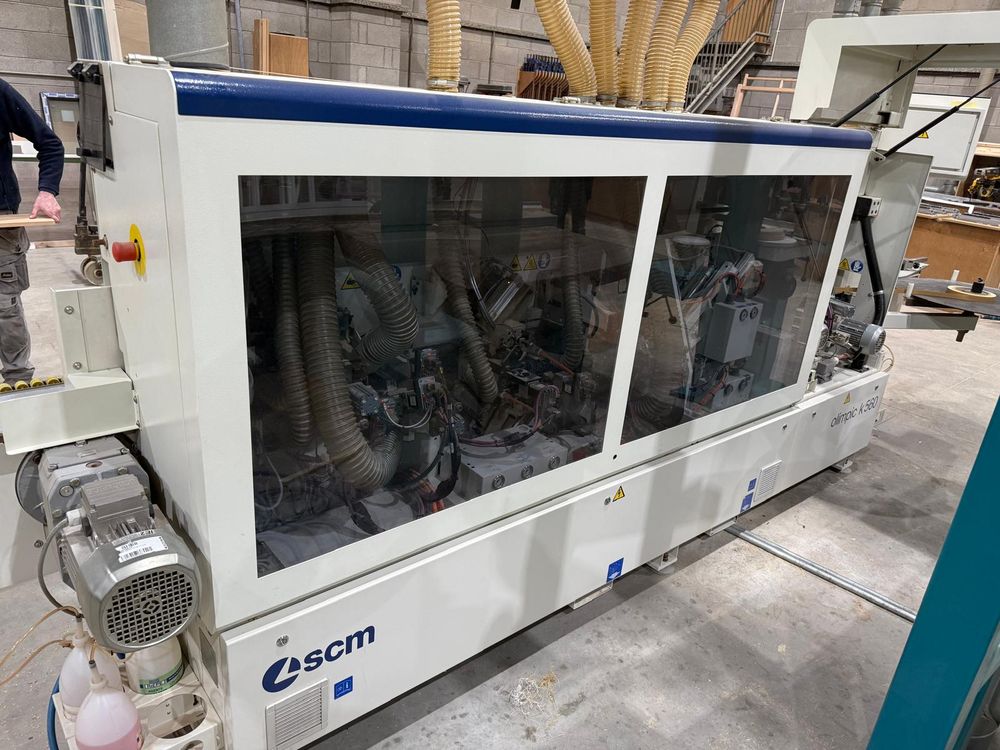

SCM Olympic K560 HP

Technical Specification :
Variable track feed speed: 12 – 18 m/min
Panel thickness: 8 – 60 mm
Thickness of edges in strips: 0.4 – 6 mm
Thickness of edge in strips (HP composition): 0.4 – 8 mm
Thickness of rolled edges: 0.4 – 3 mm
Max. section of rolled edges: 135 mm²
Coil-holder plate diameter: 780 mm
Distance between two successive panels: 600 mm
Minimum panel length (100 mm min. width): 140 mm
Min. length of edge in rolls: 180 mm
Min. length of edge in strips: 220 mm
Min. panel width (210 mm min. length): 95 mm
60 mm with units adjustment modification
Opening for panel support roller: 560 mm
Worktable height: 900 mm

RT-V PRE-MILLING UNIT:
Max. removal: 55 mm²
Max thickness removal: 3 mm
Panel thickness: 8 – 45 mm (60 mm with H=64mm tools)
Motors power: 1.5 kW
Tool diameter: 100 mm
Tool height: 49 mm
Tool rotating speed: 9000 rpm

VC-S4.1 GLUE POT UNIT:
Installed power: 3 kW
Heating time: 12 min
Glue pot capacity: 1.5 kg

K-SEL END CUTTING UNIT:
Motors power: 0.35 kW
Speed of cutters:12000 rpm
Manual blades tilting: 0° – 15°

R/K TRIMMING UNIT:
Motors power: 0.55 kW
Speed of cutters: 12000 rpm
Exceeding material to the panel thickness: 2 + 2 mm
Min. panel thickness with radius: 12 mm
Vertical/front copying devices: disc / pad
Knives radius: 2 mm

R-HP TRIMMING UNIT
Motors power: 0.65 kW
Speed of cutters: 12000 rpm
Exceeding material to the panel thickness: 2 + 3 mm
5 mm with edge thickness, 3 mm maximum
Min. panel thickness with radius: 10 mm
Vertical/front copying devices: disc / disc
Knives radius: 2 mm

ROUND X ROUNDING UNIT:
Motor power: 0.35 kW
Speed of cutters: 12000 rpm
Edge thickness: 0.4 – 3 mm
Panel thickness:
with a straight angle: 10 – 50 mm
with a shaped angle (according to the profile): 10 – 30 / 40 mm
Min. panel length: 140 mm
Min. panel width: 100 mm
Max. working speed during rounding operation: 12 m/min
Max. working speed during only trimming operation: 18 m/min
Distance between two successive panels: 600 mm
Vertical/front copying devices: disc / pad
Knives radius: 2 mm

RAS-K EDGE SCRAPING UNIT:
Min. panel thickness: 12 mm
Vertical/front copying devices: disc / disc
Knives radius: 2 mm

RAS-HP EDGE SCRAPING UNIT:
Min. panel thickness: 10 mm
Vertical/front copying devices: disc / disc
Knives radius: 2 mm

SP-V BRUSHING UNIT:
Motors power: 0.13 kW
Speed of cutters: 1400 rpm
