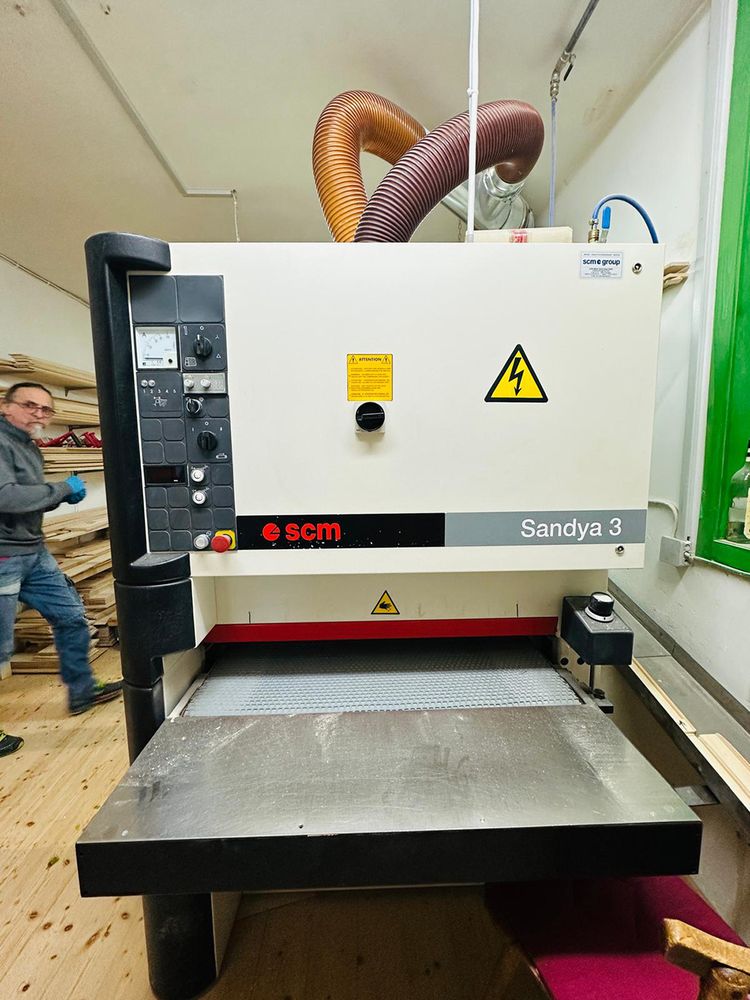

SCM Sandya 3 S RCS 95

Used machine
Equipment and technical specifications:
1. Unit with rubber-coated calibration roller
Hardness 85 Sh, diameter 120 mm

2. Combination unit equipped with rubber-coated grinding roller
Hardness 85 Sh, diameter 120 mm and with hard grinding shoe

Electronic sanding belt oscillation
Motor thickness table stroke
Digital display of working height
rubber-coated pressure rollers in inlet and outlet per unit
flexible steel pressure shoe in the inlet
2 Rolls in the inlet and outlet of the conveyor belt
main motor automatic star/triangle circuit

Technical data:
Working width 950 mm
min. and max. Working height 4 - 170 mm
Sanding belt width 970 mm
Sanding belt length 1900 mm
Engine 7.5 kW
Feed 4.5/9 m/min
Suction nozzle 2 x 140 mm
Dimensions: 1400 x 1700 x 2000 mm
Weight approx. 1000 kg
