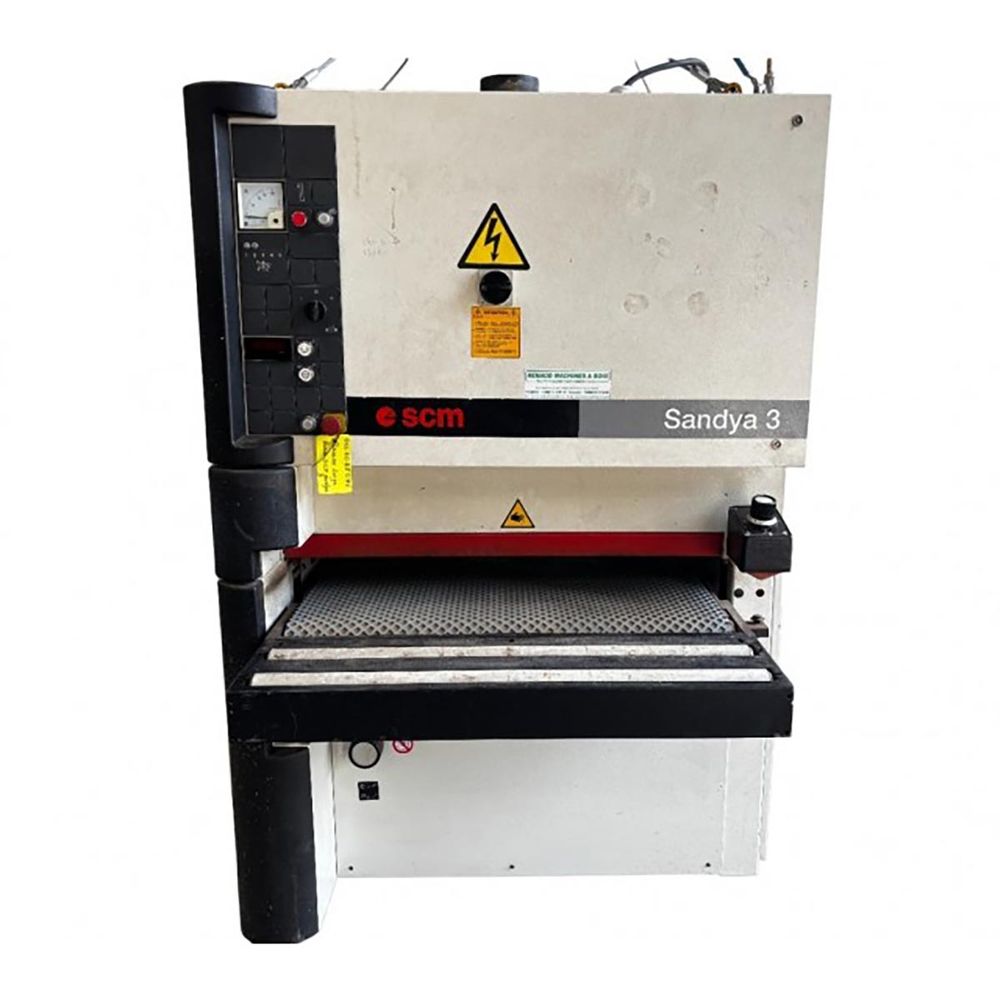

SCM SANDYA 3

2-WIDE BELTS SANDER CALIBRATOR
MAKING CAPACITIES:
- Max. height (thickness) 170 mm
- Max. workpiece width 950 mm
- Min. workpiece length 340 mm
- Abrasive belt speed 16 m/s
- Belt feed speed 4.5 or 9 m/min
- Suitable belts from 16 to 1200 grit, Dimensions 970x1900 mm

MACHINE COMPOSITION:
- 2-roller tables at the front and rear
- Digital height display
- Automatic table positioning by feeler gauge
1) Calibration
1st belt on cylinder Ø100 mm steel
2) Calibration and sanding
2nd belt on Ø100 mm steel cylinder and time-delayed rigid sanding pad

MACHINE FEATURES:
- 400V main power supply. Three-phase Hz
- Automatic star-delta starter
- Installed power 11.85 kW (16 hp)
- Ammeter(s) for power absorption control
- Feed motor 0.3 kW
- Belt motors 11 kW (15 hp)
- Up and down motor 0.55 kW
- Pneumatic roller tension, oscillation, and retraction
- Operating pneumatic pressure 6 bar
Estimated consumption 30 Nl/min
- Suction, two upper inlets Ø140 mm
Recommended flow rate 3120 m3/h Speed ​​28 m/sec
- CE marking, Emergency stop on pass limiter
- Padlockable disconnect switch, front/rear palm switches
Dimensions: 1400 x 1700 x 1850 mm (height x width x depth)
Weight: 972 kg
