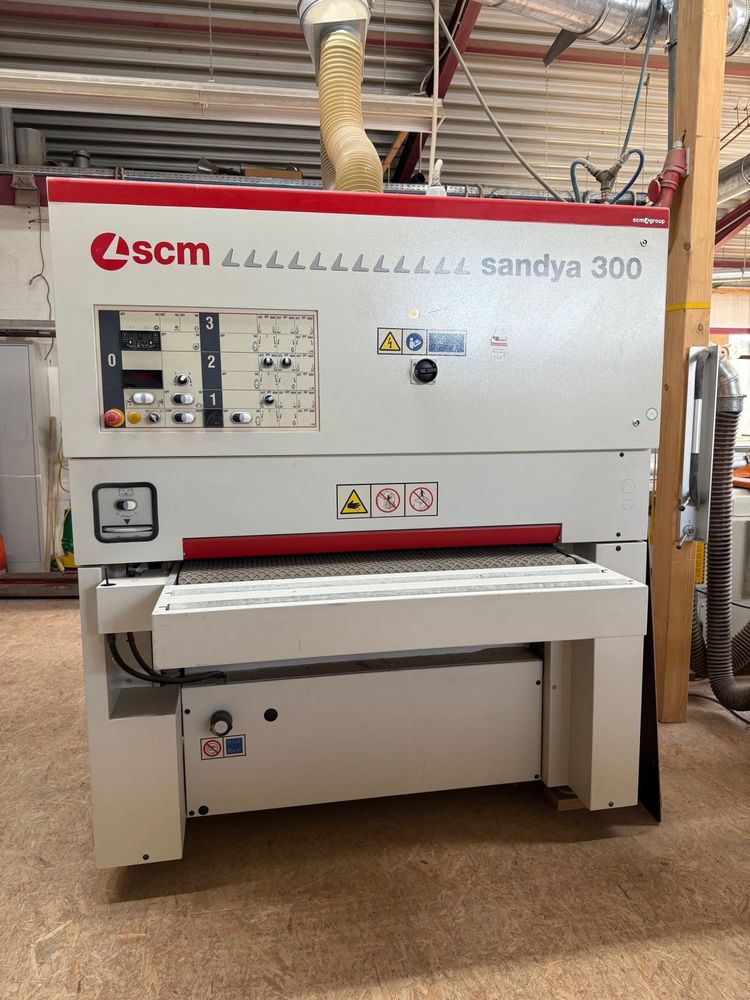

SCM Sandya 300 RCS 110

- Control panel with push button with illuminated signal
- Motorized table height adjustment for adjusting the working force
- Digital display for the working height
- Natural rubber feed conveyor
- Floating rubber pressure rollers in front of and behind each work unit
- Flexible steel sheet pressure element at the inlet of the first work unit
- Two table rollers each at the inlet and outlet of the feed conveyor
- Electronic sanding belt oscillation
- Optimized extraction hoods for more efficient extraction performance with lower air volume
- Emergency stop bar at the workpiece inlet
- Emergency stop switches at the inlet and outlet
- Lockable main switch
- Automatic star-delta start for the main motor
- Motor protection switch for the main motor
- Automatic brake for immediate unit stop
- Automatic machine shutdown in the event of:
* Sanding belt break
* Sanding belt not tensioned
* Protection against lateral movement of the sanding belt
* Lack of compressed air
* Main motor overload
- Motors in Insulation class IP 54

TECHNICAL DATA :
* Working width 1,100 mm
* Min. and max. working height 4-170 mm
* Sanding belt width 1,115 mm
* Sanding belt length 1,900 mm
* Main motor power 7.5 kW
* Gear motor 0.3/0.55 kW
* Feed speed 4.5/9 m/min.
