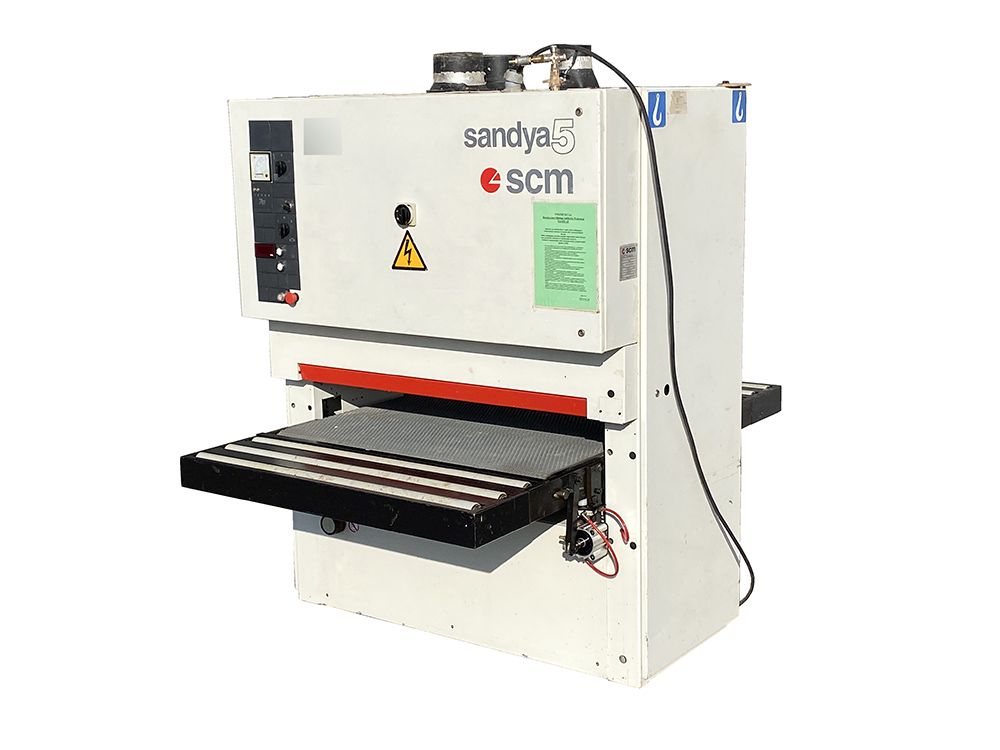

SCM SANDYA 5 RCS 110/2

Wide Belt Sander
TECHNICAL PARAMETERS:
- Max workpiece width: 1100 mm
- Max workpiece height: 170 mm
- Min workpiece height: 3 mm
- Min workpiece length: 370 mm
- Sanding belt dimensions (W x L): 1115 x 1900 mm
- Feed motor power: 0.8 kW
- Two feed speeds: 4.5 and 9 m/min
- Sanding height adjustment motor power: 0.25 kW

- 2 units:
1) 140 mm diameter grooved metal calibrating roller
- Rubber pressure roller

2) 140 mm diameter grooved rubber roller + pad + metal roller
- Rubber roller Pressure
- Unit I and II motor power: 15 kW

- Bottom:
- 3 sliding rollers
- Pulling belt
- 3 sliding rollers

- Pneumatic belt oscillation
- Air blower for the second sanding belt
- Electric + manual table lift (for precise adjustment)
- With pneumatic brake
- Sanding belt speed: 16 m/s
- Working pressure: 6 - 8 bar
- Extraction port diameter: 2 x 160 mm, 2 x 110 mm

Machine dimensions:
- Overall dimensions (L x W x H): 2000 x 1600 x 2000 mm
- Weight: 1200 kg
