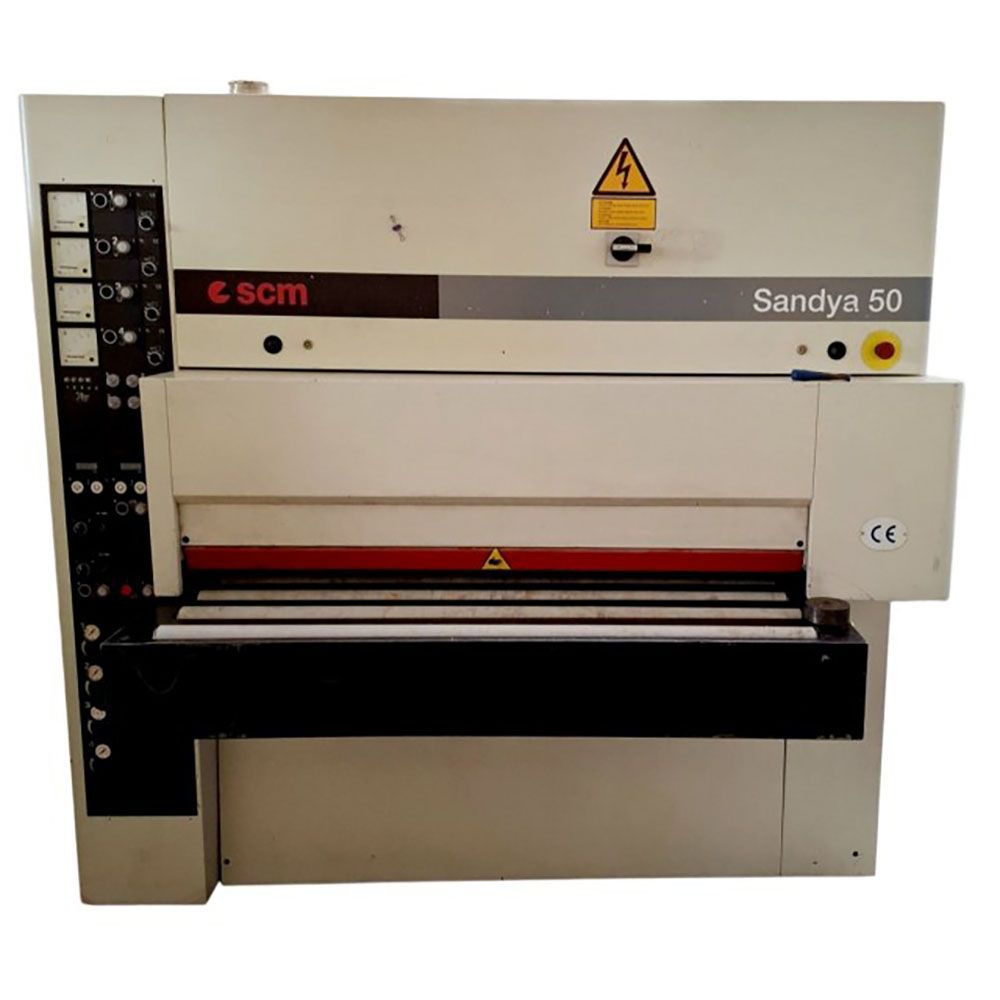

SCM SANDYA 50

TOP/BOTTOM SANDER CALIBRATOR 4 WIDE BELTS
MAKING CAPACITIES:
- Height (thickness): to mm
- Part width: to mm
- Minimum part length: mm
- Abrasive belt speed:
- Belt feed speed: m/min
- Suitable belts: grit to , Dimensions: x mm
Our stocked abrasive belts -here-
Please indicate the references used

MACHINE COMPOSITION:
- Welded frame with operator-facing control panel
- Infeed tables to 4 rollers and 1 rear roller
- Digital height and feed speed display
Lower unit: 220 mm diameter cylinders
1st unit: Steel cylinder calibration and 2nd unit: Semi-rigid rubber finishing sanding (SH85/90)
Suction belt
Upper unit: 220 mm diameter cylinders
1st unit: Steel cylinder calibration and 2nd unit: Semi-rigid rubber finishing sanding (SH85/90)

MACHINE FEATURES:
- Main power supply: 400V. Three-phase 50Hz
- Automatic star-delta starter
- Nominal current IN 190 A
- Belt motors: 4 x 22 kW (4 x 30 hp)
Toothed belt drive
Ammeter(s) for monitoring power absorption per unit
Mechanically variable speed feed motors: 2 x 2.2 kW (2 x 3 hp)
Upper module raising and lowering motor: 2 x 0.55 kW
Lower module raising and lowering motor: 2 x 0.37 kW
- Pneumatic roller tension, oscillation, and retraction
- Pneumatic power supply: 8 bar
Estimated consumption: at Nl/min
- Suction: 6 upper intakes: 2 x Ø200 + 4 x Ø120 mm
2 lower intakes: Ø250 mm
Recommended flow rate: m3/h (x) Speed: m/sec
- CE marking, Padlockable disconnect switch, Emergency stop on the pass limiter,
Front/rear push button stops for brake motors
Transport dimensions: x x h.mm
Weight: 3000 kg
