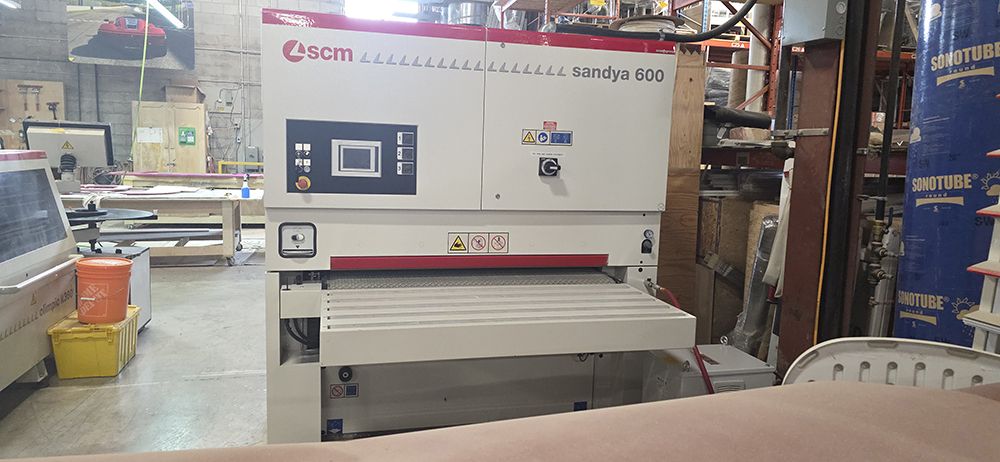

SCM Sandya S600 – 135 RRCS

Wide Belt Sander (3‑Head)
Sanding Configuration: Three‑Head (RRCS)
Condition: Used – Great Condition
Status: Fully operational, recently serviced by an authorized SCM technician
Usage: Very low hours

Working Capacity :
Working width: 1350 mm (53")
Minimum / Maximum working thickness: 4 mm – 170 mm
Sanding belt dimensions: 1370 mm × 2150 mm

Sanding Groups (RRCS Configuration) :
Three sanding heads, configured for:
Calibrating
Intermediate sanding
Final finishing
Large‑diameter sanding rollers designed for stability and uniform pressure
Electronic “MESAR” sectional pad, providing excellent surface conformity and finishing quality across varying panel thicknesses

Drive & Power :
Motor power per sanding group: 11 kW (15 HP) each
Designed for consistent torque and reliable performance in production environments

Feed System :
Variable feed belt speed: 4.5 – 9.0 m/min
Diamond‑profile feed belt for superior panel traction and stability
Automatic feed‑belt centering and tensioning system

Control & Automation :
SCM Logic electronic control system
Program storage for repeatable sanding setups
Digital ammeter for real‑time motor load monitoring
Automatic worktable positioning with electronic thickness detection

Electrical Specifications :
Voltage: 600V
Phase requirements: 3‑phase
Frequency: 60 Hz
Short‑circuit rating: 5 kA
Manufactured by: SCM Group S.p.A., Rimini, Italy

Applications:
Solid wood calibrating and sanding
Veneered panels
Painted and lacquered surfaces
Furniture components
Cabinet panels and millwork
High‑quality finish sanding with consistent results
