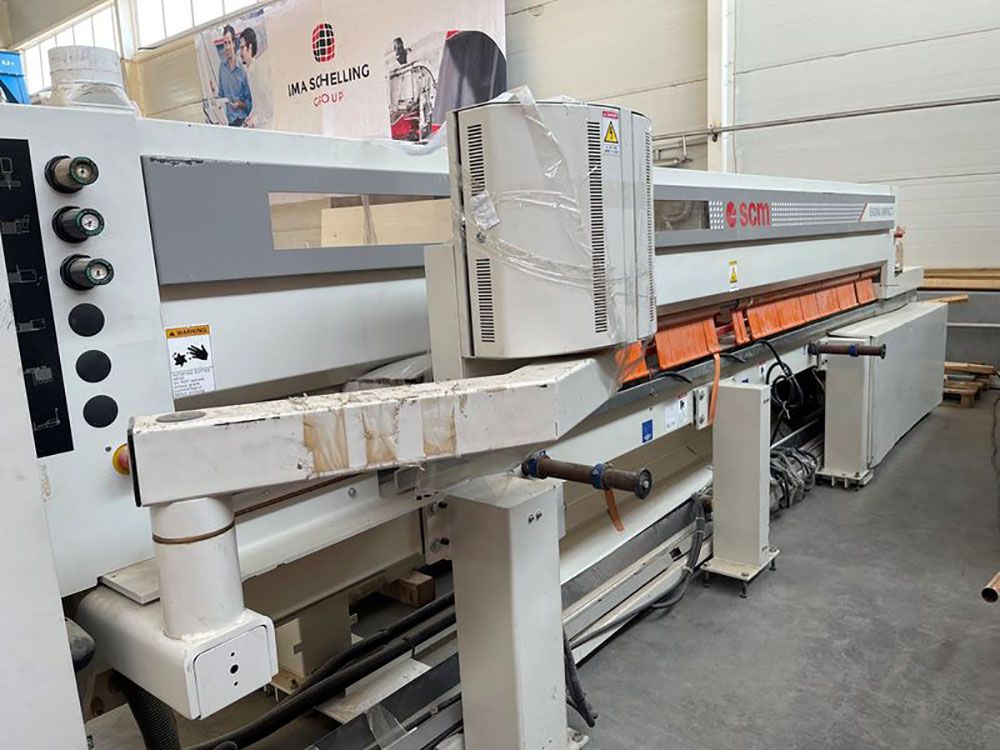

SCM SIGMA IMPACT K
Ref :
2768275-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
SIGMA IMPACT K
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Saw blade reach, mm 85
Table height, mm 950
Cutting dimensions, mm 3200x3200
Saw carriage speed, m/min 6 – 30; 70; 120
Pusher speed, m/min 0-27; 0-135; 0-150
Main saw unit
Electric motor power, kW 11
Saw blade speed, rpm 3900
Saw blade diameter, mm 380
Saw blade bore diameter, mm 80
Scoring saw unit
Electric motor power, kW 1.5
Scoring blade speed, rpm 6300
Scoring blade diameter, mm 160
Scoring blade bore diameter, mm 55
Installed power, kW 14 – 21
Voltage, V 400
Compressed air consumption, l/min 300
Pneumatic system pressure, bar 7
Air flow speed in aspiration, m/s 20
Air consumption by aspiration, m³/h 4060
Diameter of aspiration nozzles, mm 3x120, 150
