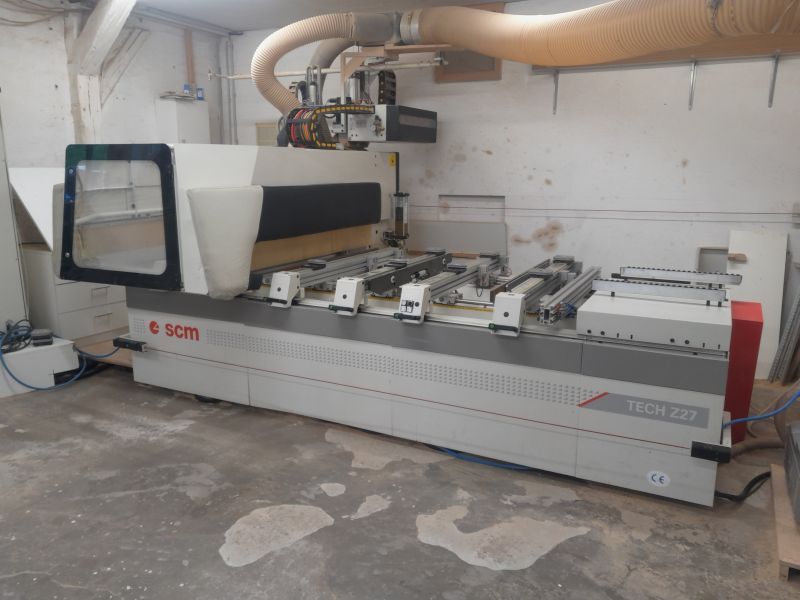

SCM Tech Z 27

Drilling work area: 2650 x 1018 mm
Milling work area: 2650 x 1240 mm
Travel path X-Y 2995 x 1385
Panel thickness: 100 mm
Z axis travel length: 200 mm
Throughput height: 180 mm
Drilling unit:
Vertical 15 + 4
9 individually accessible vertical spindles in X
5 individually accessible vertical spindles in Y
4 horizontal spindles 1+1 in X
2 horizontal spindles 1+1 in Y
Speed: 4000 rpm
Power: 2.2 kw
B7Yhmmpp
Grid: 32 mm
Drill holder: M 10 with 11 mm fitting
Suction nozzle D = 160 mm
Grooving saw unit in “X”
Integrated in the drill head
Grooving saw blade diameter max. 120mm

Main milling unit:
Tool holder: HSK63F
Speed: 1500 - 24000 rpm. continuously variable via inverter
Motor power: 4.4 kW (6 HP) from 12,000 rpm (S1)
Right/left rotation
Ceramic bearing
Tool changer R8L, moving in X
Tool diameter max. 120 mm
Max. tool length: 80 mm

Horizontal milling unit / lock box unit
With two opposite outputs for milling and grooving
Speed ​​9,000 - 18,000 rpm continuously variable via inverter
1 output for collet 3-20 mm (ER32)
1 output for saw/collet 3-12 mm (ER32)
Saw D = 120 mm / bore 50 mm
Motor power 3 kW
Max. tool diameter front milling 20 mm
Max. tool length front milling 110 mm
Max. tool diameter rear milling 12 mm
Max. Tool diameter rear milling 80mm
Max saw blade diameter 100mm
Saw blade bore (ER32) 50mm
Saw blade mandrel diameter (ER32) 12mm
Vacuum pump 100 cbm/h
Power 1.25kW
Without tools
Weight: 2800 kg
Space required: approx. 5780 x 2650mm
Total connected load max. 16kW
Recommended fuse 64A
Compressed air 6-7 bar
Compressed air consumption 3400cbm/h
Central suction connection diameter 300mm
The A-axis was shut down because the machine
was only used in 3-axis operation. A-axis works!
