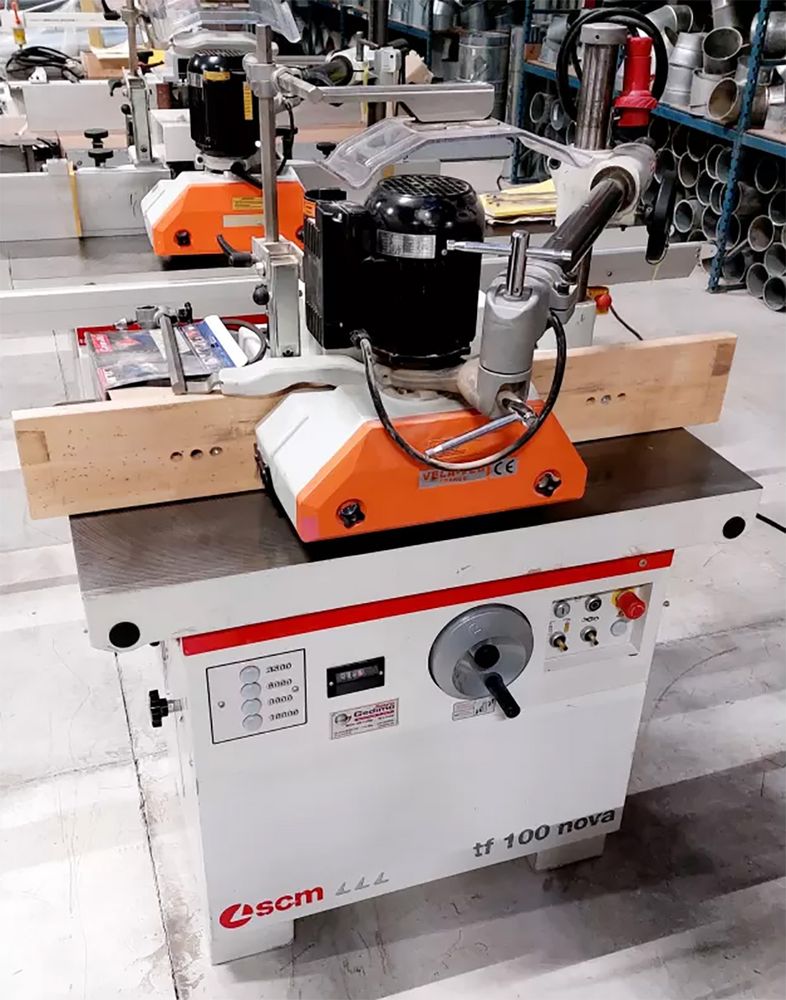

SCM TF110 NOVA TENONING SPINDLE MACHINE WITH LONG TABLE & FEED DRIVE

CAPACITIES:
- Spindle Ø 50 mm
Usable length (above the table): 125 mm
Vertical stroke of the spindle: mm
- Rotation speeds: 3500 / 6000 / 8000 / 10000 rpm

MACHINE COMPONENTS:
- Welded steel frame
- Cast iron table (W x D) 1080 x 650 mm
Set of table bushings
Tools that fit in the table: Ø240 x h.85
- Wooden side fence, h.165 mm
Fine adjustment of the right-hand fence via rack and pinion
Maximum tool diameter for working with the fence: Ø 260 mm

Equipped with a power feeder:
- Brand: VELA VEB - Model: vaf 34
- Year: 2010 - Power: 1 hp
- 3 Rubber rollers
- 4 Speeds Drives: 2 mechanical x 2 electric

OTHER FEATURES:
- Power supply: 380V, Three-phase, 50Hz
- Manual star-delta start
- Installed power: 5.73 kW (in A)
- Motor power (brake): 5 kW (6.8 hp)
- Dust extraction on the spindle moulder hood: Ø120 mm

Lower dust extraction port: Ø120 mm
- CE marking, lockable disconnect switch, emergency stop button
Standardized guard for working with support against the fence
Dimensions (W x D x H): 1.20 x 0.70 x 1.70 m
