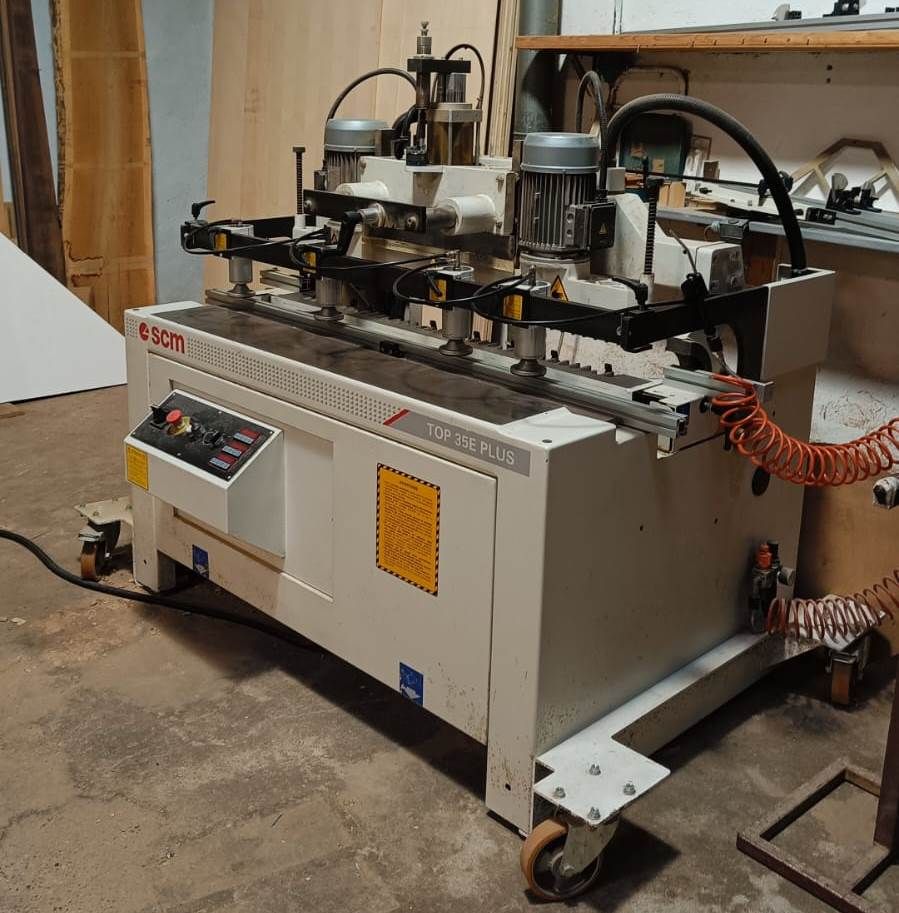

SCM TOP35E PLUS

Multiple drilling machine:
– Top drilling, with electro-pneumatic positioning of the drilling head, tiltable to any angle from 0 to 90°
– Digital displays for horizontal and vertical positioning, and 0–90° rotation of the drilling unit (with decimal magnetic strips)
– 35-spindle drilling head with quick couplings
– Drilling head with 2 motors, total power 4.4 kW (6 hp)
– Head rotation motor 0.26 kW (0.35 hp)
– Maximum drilling unit stroke 127 mm
– 6-position drilling depth turret
– Hydraulic brake with adjustable stroke 50 mm
– Worktable dimensions 1255 x 500 mm
– Min./max. Panel thickness 10/70 mm
– 4 pressure pistons for panel clamping
– With aluminum guides and reference stops
– With 45-degree horizontal drilling guide
– Overall dimensions approximately 1.7 x 1.5 x h=1.7 m
CE-certified machine
Excellent overall condition
