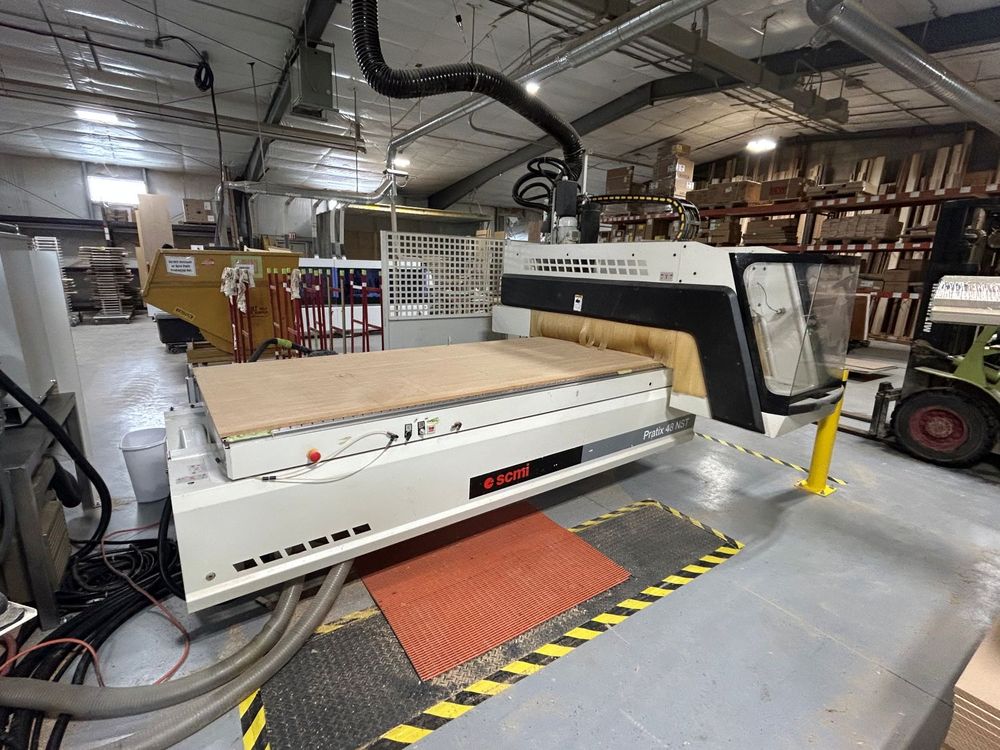

SCMI Pratix 48 NST 3 axes

Nesting CNC Router
Features:
- 4′ x 8′ Stationary aluminum table, machined with a “MATRIX” grid pattern for fixture parts.
- Working field: “X” Axis is 106″ (2,690 mm), “Y” axis 51″ (1,295 mm), “Z” axis stroke is 13.3″ (340 mm); max. material clearance is 4.9″ (124 mm).
- Positioning Speed: “X” & “Y” Axis is 246 FPM (75 MPM), “Z” axis is 98 FPM (30 MPM)
- Closed loop AC Servo drive system driving precision ground ball screws; All axes ride on extra large precision profile linear guide ways.
- Work Table: Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for “nested based machining”; pop-up pins on the table perimeter for part location.
- Boring unit: 3 HP (2.2 kW) – 4,000 RPM motor; (1) “F 12” boring unit with (12) independent vertical spindles, (7) spindles in “X” axis & (5) spindles in “Y” axis.
(6) Horizontal spindles, (2+2) in “X” axis & (1+1) in “Y” axis; (1) 120 mm dia. saw blade in “X” axis.
- Machining: (1) 10 HP (7.5 kW) “Power 2000” Electro spindle with HSK F63 tool adaptor; variable spindle speeds from 1,500 – 18,000 RPM.
(1) 8-Position traveling ATC tool carousel.
- Operator & Machine Control: PC Front End with SCM “XILOG Plus” + “ASPEN 2004” + Windows “XP” operating system; 15″ CRT color display; 40 GB hard drive, 128 MB RAM;
- Industrial keyboard & mouse; CD-ROM disk drive; all housed in air cooled cabinet.
- Complete with: (1) 10 HP Capacity Vacuum Pump
- Working field: “X” Axis is 106" (2,690 mm), “Y” axis 51" (1,295 mm), “Z” axis stroke is 13.3" (340 mm); max. material clearance is 4.9" (124 mm).

Specifications:
- 600 V
- 60 Cy
- 3 Ph

- Machine weight: 3300kg
- X axis working area 8 ft 9.91 inch
- Y axis working area 4 ft 0.82 inch
- Main Electrospindle power 8.5 KW
- Number of controlled axes 3 axes
- Total number of drilling spindles 9
- Total number of tool changer positions 8
