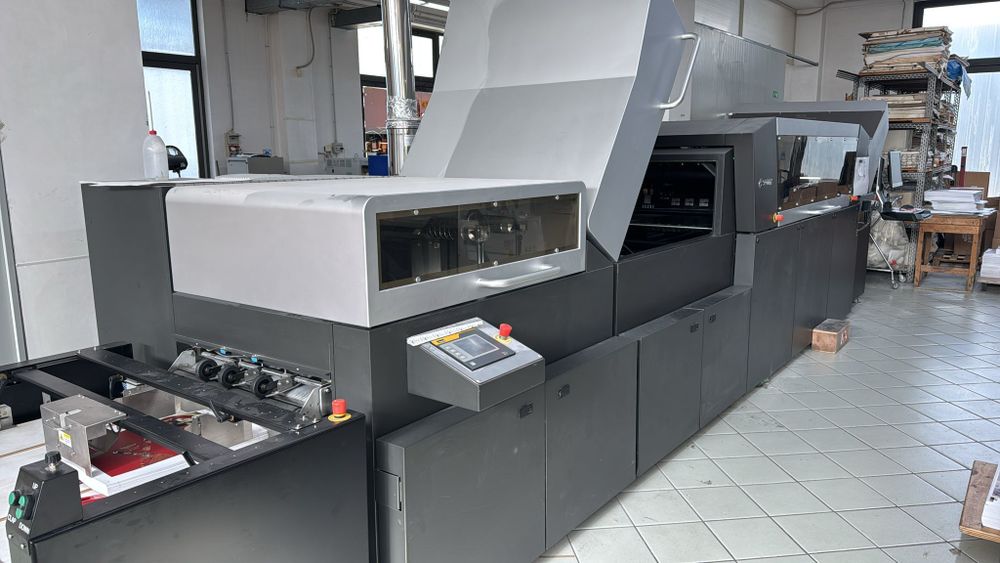

Scodix Ultra Pro 545x788 mm

Max. size: 545x788 mm
Resolution: 2.540x450 dpi
Printing technology UV “Fixed Array” inkjet print-heads
Media handling Scodix Twin-Tray™ technology (TT)
Resolution Up to 2,540 x 450 DPI
Variable data PDF, Optional Barcode system
Supported image standards Standard PDF
Scodix RSP™ Technology Up to 4 CCD cameras system, Automatic positioning
Communication protocol Hot Folder, LAN
Substrates* Offset, Digital, Plastics, Laminated and coated substrates
Substrates loading sizes
Minimum L297 x W420 mm / 11.7 x 16.5 in
Maximum – L545 x W788 mm / 21.5 x 31 in
Printing Image size Maximum – L504 x W748 mm / 19.86 x 29.5 in
Polymer
Scodix PolySENSE™ Clear Polymer
Scodix Spot™ - Flat, Clear Polymer
Polymer layer thickness From 5 Up to 250 microns
Print Heads Maintenance Automatic process
Substrates input system Automatic feeder
Substrates output systems Automatic stacker
Substrates weight 135 - 675 gsm / 6 - 30 points
Substrates thickness Up to 700 micron
Air requirements Air Flow: 34 CFM. 7 bar +/-1 - regulated
Scodix software Internal RIP, Software Editor
Press dimensions (L x H x W) 6,327 x 1,788 x 1,889 mm / 249 x 71 x 74 in
Operating environment
Temperature: 15ºC to 30ºC (59ºF - 86ºF)
Humidity: 40% to 80% relative humidity, non-condensing
Electrical requirementsVoltage: 3x220, +/-5% 3 Phases + G + N (star connection)
Frequency: 50 /60 Hz
Current: Avg. 25 Amps in production
Power consumption:
Avg.: 13.5 kVA in production
Max.: 30 kVA
Circuit Breaker: 44 Amps minimum
Multi Polymer Tank System Up to 4 tanks (3 Polymers and flushing fluid)
Polymer Switch System Automatic Polymer Switch System
Press weight (Net) 4,400 kg / 9,700 lbs.
