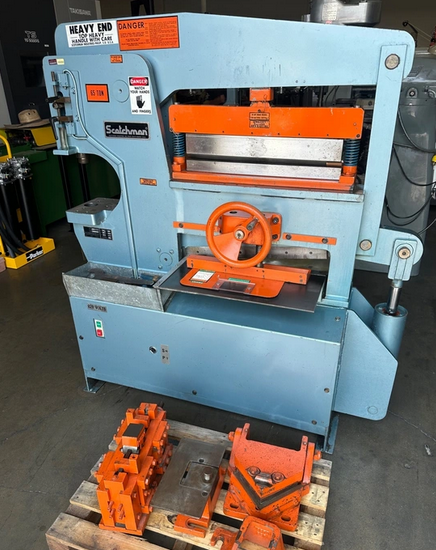

Scotchman 6509 65 Ton

Punching pressure 65 Ton
Brake 40 Ton
Flat bar shear length 24"
Hydraulics 2,600 PSI
Output power 5 HP
Picker tool sizes 1/2", 3/4", 1"
Pipe notcher sizes 3/4", 1"
Rectangular notcher 2" x 2-1/2" x 3/8"
Round rod max size 1/4" to 1-1/4", 9 cavity
Shear angle 90°: 6" x 6" x 3/8"
Shear angle 45°: 3" x 3" x 3/8"
Special tooling max diameter 4"
Square rod max size 1/4" to 1", 1 cavity
Square tube shear 1/2" to 2", 12 gauge
Stroke per minute heavy 17 SPM
Stroke per minute light 40 SPM
Throat depth 9"
V notcher 6" x 6" x 5/16"
Dimensions 60" L x 24" W x 66" H
Weight 2,750 lbs
Shear attachment
Brake attachment
Channel iron shear attachment
Punch attachment
Corner notcher attachment
