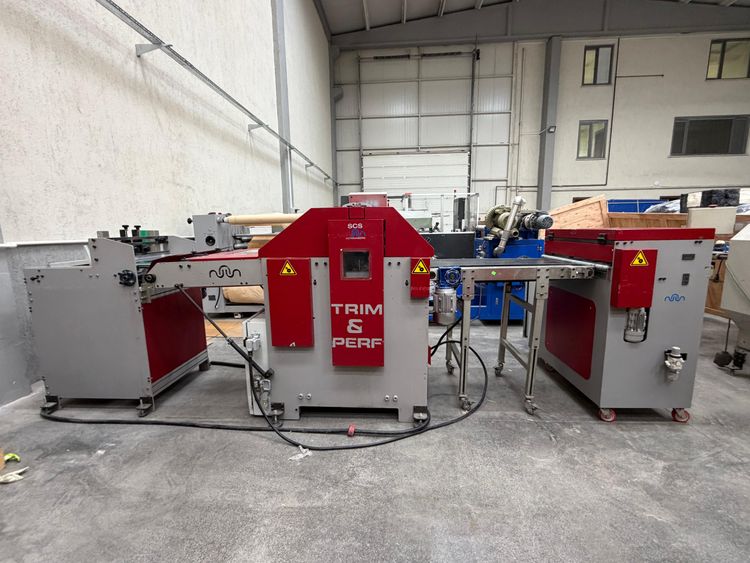

SCS SCS Automaberg Trim & Perf

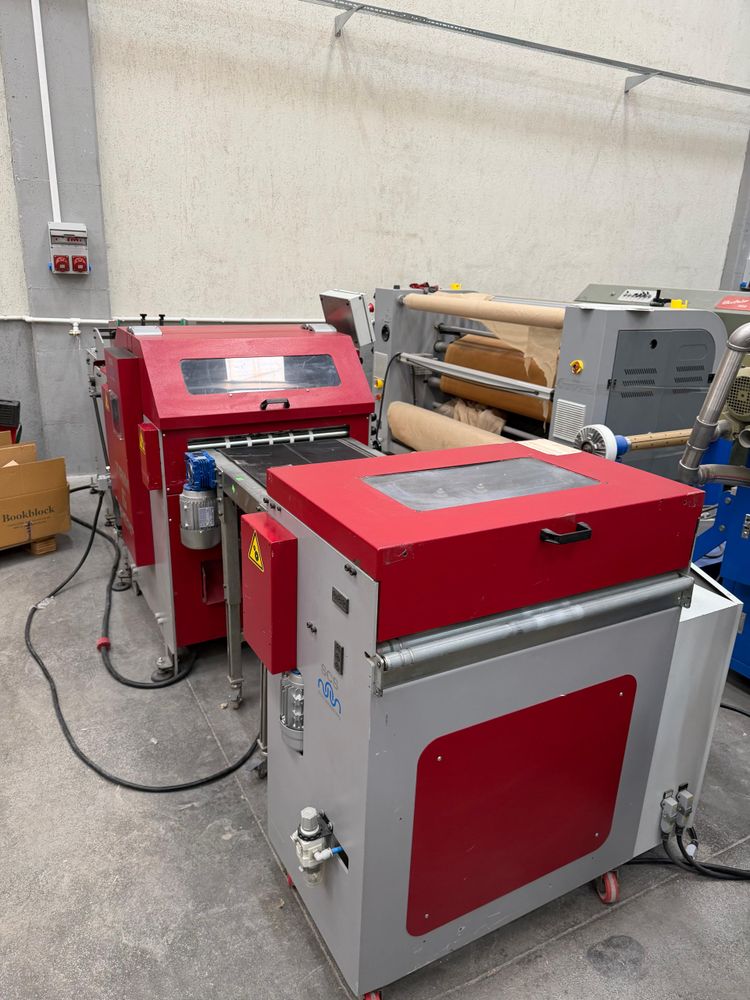

2016 SCS Automaberg Trim & Perf – Die-cut, Trim, Split, Cut, Perforate, Punch System

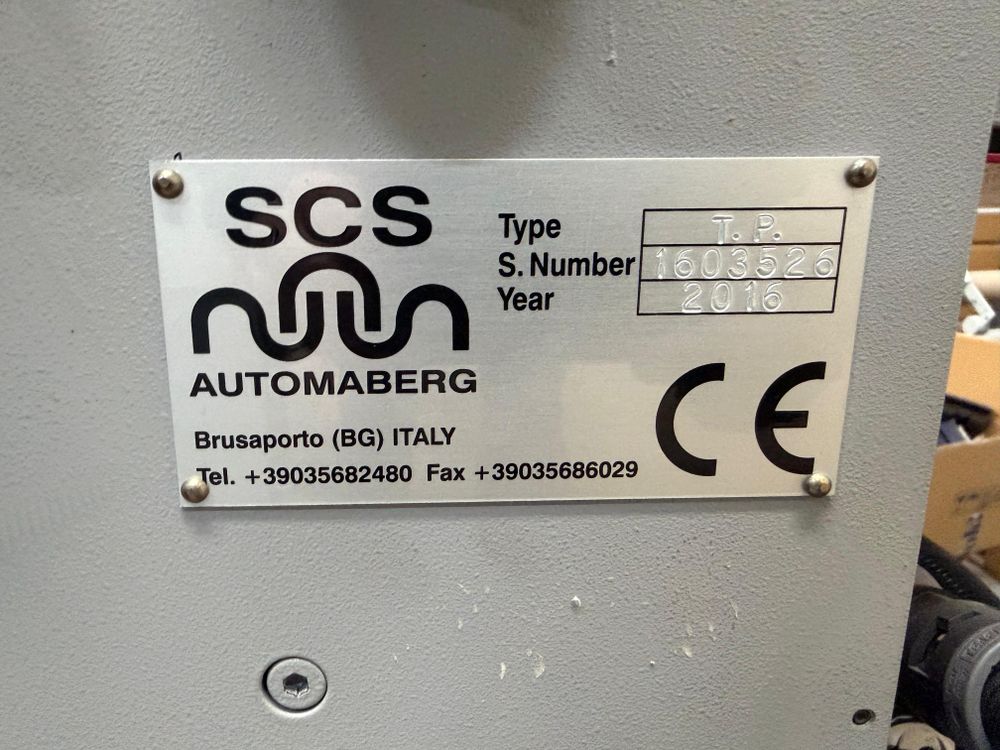

2016 TP (S/N: 1603526)
2016 TD (S/N: 1603528)

Good for cutting flyers etc. We are a bookbinders so have not go the usage we thought we might. Has been recently serviced (c. £5k).


A highly versatile and productive line which is a genuine “ALL-IN-ONE” solution for finishing operations. The line can include different work stations for multiple tasks and process optimization. The combination of TRIM&PERF with complementary modules offers high quality products combined with reliability, allowing the needs of digital systems to be met, as well as those for binding and, in particular, the production of specific products for single and multi-up work IN A SINGLE PASS.
Our company specializes in “ON DEMAND” products and is always able to offer NON-STANDARD solutions.
ADVANTAGES
Easily moveable

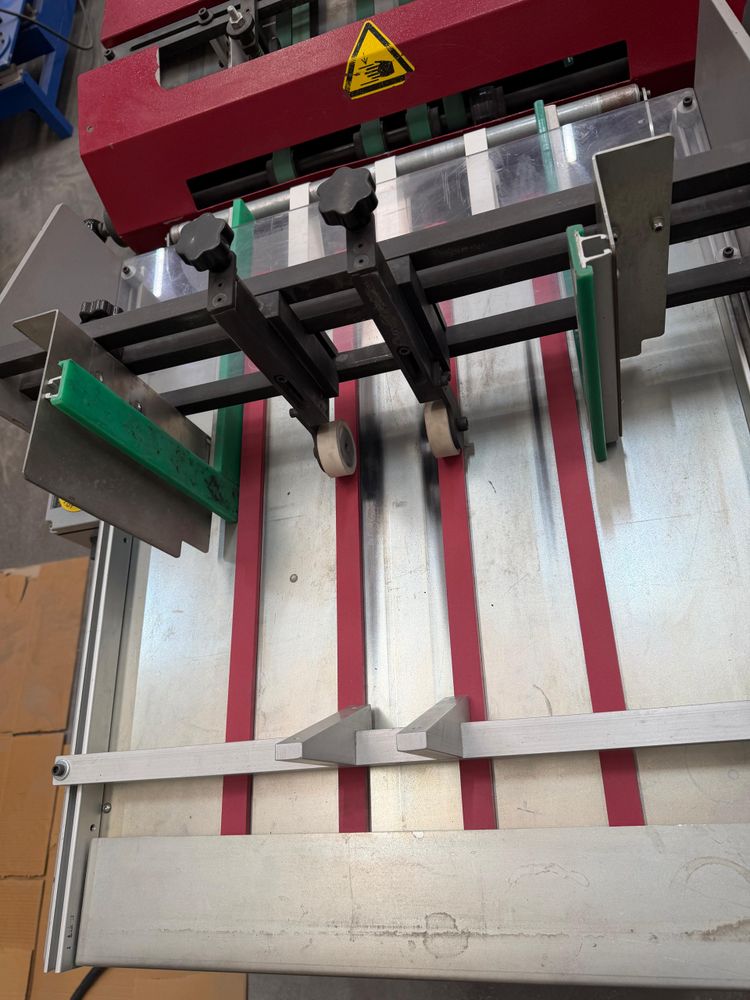

In-feed belt table adjustable in height for easy connection with upstream machines
The complementary modules allow an easy connection IN-LINE with other machinery
Handles any material
By simply pushing a button TRIM & PERF is transformed into a regular conveyor belt, no bypass or similar equipment needed
The production of specific products also on request, will be met by the use of different accessory tools and the complementary modules
COMPLEMENTARY EQUIPMENT (not necessarily included here)
+ CONTINUOUS FEEDER Rubber belt type for folded and saddle stitched products and perfect bound books.
+ 3 WAY This module allows perfect alignment of digital sheets to a print reference mark.
+ GRIPPER Electronic system for PASS die-cutting: reduces machine set-up time, reduces preparation times and overlaying, allows a high level of product repeatability and reduces costs of American style dinking dies.
+ WASTE EJECTION The system allows diecutting without waste, clean shape products.
+ THERMO STICK Sticks together some sheets on the ink reference sides by thermo welding - improving the die cutting production process.
+ PRE-CUT DEVICE Perfect 'spine' cutting system up to 14 mm thickness.
+ TEAR OFF - PULL AWAY The system pull away mingled perforation sheets in preparation for the sewing step.
+ SIMPLE DECK Collect cards in series after die cutting.
+ EXIT BELT Shingle delivery belt with batch counter.
AN ALL-IN-ONE SOLUTION FOR ALL YOUR FINISHING NEEDS

DIE CUTTING
No nicks! Connections between the cut product and the waste are not required
Automatic waste ejection
'Clean' shapes ready to be packed
TRIMMING-SPLITTING
Superior quality in splitting and trimming - also for very small dimensions
ROUND CORNER CUTTING
Cutting including all four corners in a single pass
PERFORATING PUNCHING
Combined perforating-punching jobs in a single pass to optimize production process efficiency

IDEAL FOR
FLAT CARDBOARD, ALSO LAMINATED UP TO 2 mm thickness
+ 3 WAY PERFECT ALIGNMENT OF DIGITAL SHEETS TO A PRINT REFERENCE MARK
Folded and stitched product die cut without waste
NON STANDARD SOLUTION ON DEMAND also on plastic material up to 1 mm thickness
+ PRE CUT DEVICE PERFECT SPINE CUTTING SYSTEM up to 14 mm thickness
Standard radii from 3 to 15 mm
stamp perforating, wire-comb perforating, tear-off perforating, single hole punching, file hole punching, euro hole
Specifications
Product size untrimmed (LxW)
sizes subject to jobs standard max. 500 x 600 mm
standard min. 50 x 50 mm
Product thickness standard max. 4mm
optional max. 14mm
Speed max. mechanical 9.000 cycles/hr
Installed power 3 kW *
Compressed air requirement 200 l/min at 6 bar *
Weight 700 kg *
Dimensions (LxWxH) 2,000 x 1,360 x 1,200 mm *
