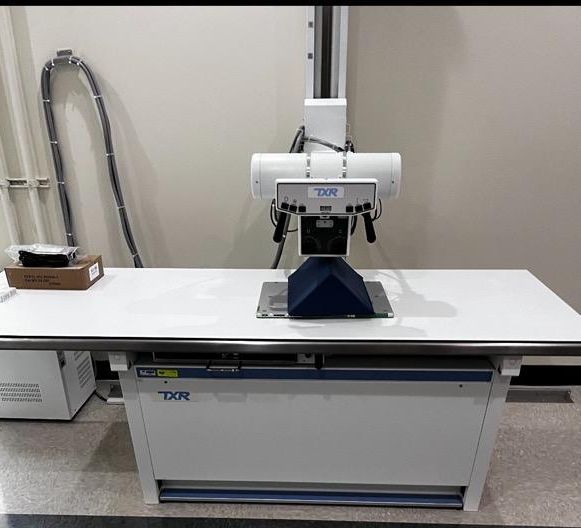

Sedecal TXR X-Ray Room

High Frequency Generator Part# SHF 310AP
32kW, High Frequency Generator
Digital displays
APR, Anatomical Programming
Table mount
Exposure hand switch
Single Phase 208/240VAC
50 ft. console cables

X-Ray Tube
140,000 Heat Unit X-Ray

Tube Stands Part #13-CT/S114
Wall Non-Rotate Tube stand with Transverse Travel
+/-5" Transverse travel
Vertical travel of 13.25" to 73.5"
Magnetic locks for longitudinal, transverse, vertical & tube rotation
75.2" Longitudinal Travel with 8' floor track

Wall Stand Part #13-BF7/S109
Floor to Wall Mount, Counterbalanced Column
Vertical Travel: 9-3/4” to 72-3/4”
Electric locks

Medical Tables part #MULTI-FWFTT

Four Way Float Top Table, Fixed Height, Multirad
86.6” x 32.4” float top table (2200mm x 825mm)
Table top supports patients up to 661 lbs (300 kgs)
Longitudinal table top travel 35" (+/-17.5") (900mm)
Transverse table top travel 9" (+/-4.5") (230mm)
Table top to Film Distance: 4" (102mm)
Bucky travel: 20.3" (581mm)
Table top to floor distance 30.3" (769mm)
Electromagnetic brakes
Heavy duty grid cabinet Heavy duty manual cassette tray
103 line, 10:1 ratio, 34-44" focal range grid

H.V. Cables part #10539-20-Pair, 20’ Cables
Collimator Part # CML-125-0001-C
