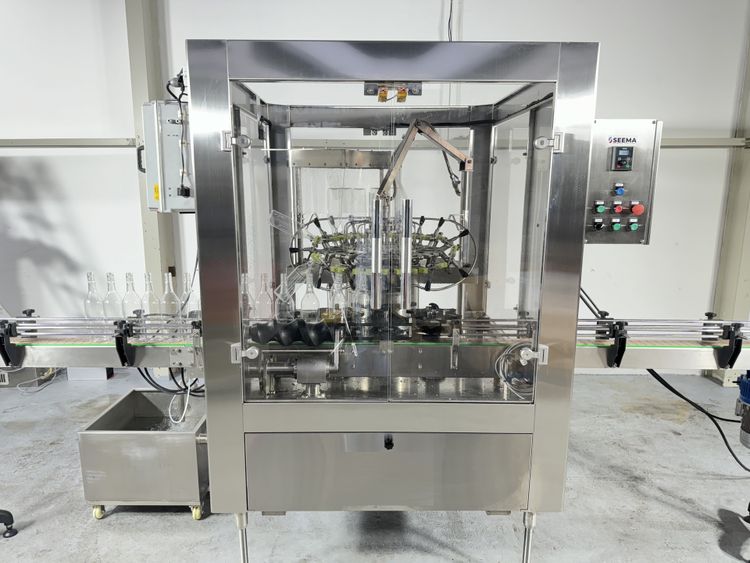

Seema STERIMAX OZON

Rinser Sterilisator 16 grippers with ozon generator

- Rinser sterilizer made entirely of stainless steel
- 1-phase system for ejecting ozone water
- Machine table made of stainless steel
- With integrated ozone generator
- 16 grippers
- Machine table and frame made entirely of stainless steel
- Bottles are gripped and held by the neck (no falling)
- Rotary machine with auger and bottle star feeders
- Maximum capacity approx. 2700 bottles/h, continuously adjustable
- Electric height adjustment
- Left-right running direction
- Ozone sterilization for safe and easy bottle sterilization
- With two bottle sizes, including 0.75 and 1 liter
- Speed adjustable via potentiometer with frequency converter
- Material: V4A AISI 316 in contact with the product
- Bottle height min/max 120-350 mm
- Bottle neck min/max D22-32 mm
- Bottle diameter min/max 40-100 mm
- AC voltage: 400 volts
- Frequency: 50 Hz
- Rated current: 2.5 amps
- Supply line fuse: 16 amps
- Power consumption: 1.5 kW
- Dimensions without bottle conveyor: 1500 x 1550 x 2100 mm
- CE-compliant
