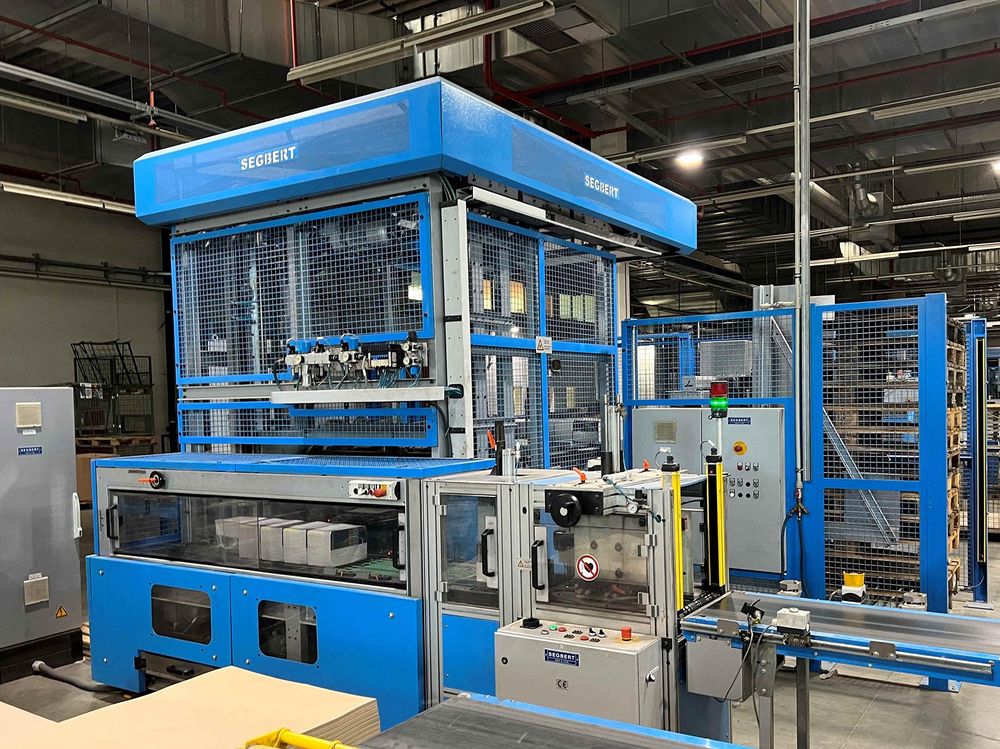

Segbert ZPA Palletizer

Technical Data:
Format: min 145 x 200 mm; max 300 x 430 mm
Stack height: max 50-300 mm
Stack weight: max 18 kg
Speed for strapped / film wrapped bundles: max 36 bundles/min
Speed for loose bundles (only with Blocking Unit!): max 24 bundles/min
Palletizing height (incl. pallet): max 1600 mm

Description:
Palletizing of strapped, film wrapped or loose (product permitting!!) bundles. With blocking unit for stable bundles.
Infeed with turning device for variable rows which are combined to a layer.
Each finished layer is then placed onto the pallet.
Includes pallet conveying and empty pallet terminal.

Equipment:
Palletizer:
· Simple palletizer (one line)
· Product orientation at infeed palletizer (standard): längs

Blocking unit:
· Model: VB 95
· Infeed with flying cross (turning device) for bundles
· Right hand palletizer (palletizing to the right of the infeed)

Slip sheet dispenser:
Empty pallet dispenser:
· Model: PT

Pallet conveying:
· Pallet width (max): 1.000 mm
· 2 additional buffer positions for full pallets:
· Configuration of pallet conveying gerade
