Seidenader

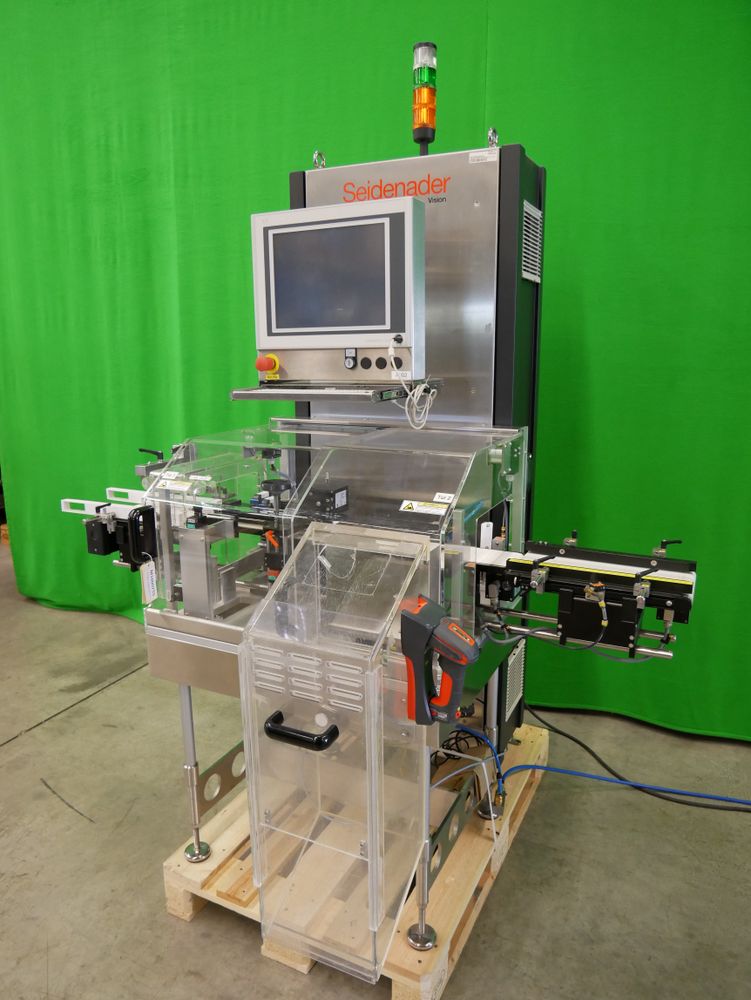

T&T Single Unit (59309A) Track & Trace System
with Wolke m600 advanced Ink jet printer
for marking and verification of folding boxes/
cartons for serialisation and aggregation (Track&Trace),
the product codes and variable data
(serial no., batch no., expiry date, datamatrix codes, French code, etc.)
printed on the folding cartons are verified
via a camera for accuracy and quality,
incuding Wolke m600 advanced Ink jet printer using HP ink cartridges
(height of printing max. 12.7 mm),
1 (one) printing station
with 2 (two) printing heads located on the back side,
infeed conveyor with a length of approx. 300 mm
and a width of approx. 185 mm,
transfer unit with lower belt and adjustable
upper belt for precise and reliable product transfer,
carton lenghth (in the direction of travel) max. 220 mm,
carton width max. 200 mm,
direction of travel from left to right,
handheld scanner, electrics 230V + N + PE /50 Hz/1,0 kW,
machine floor space approx. 1850 x 1500 mm (WxD),
machine height approx. 2300 mm,
machine net weight approx. 700 kg
