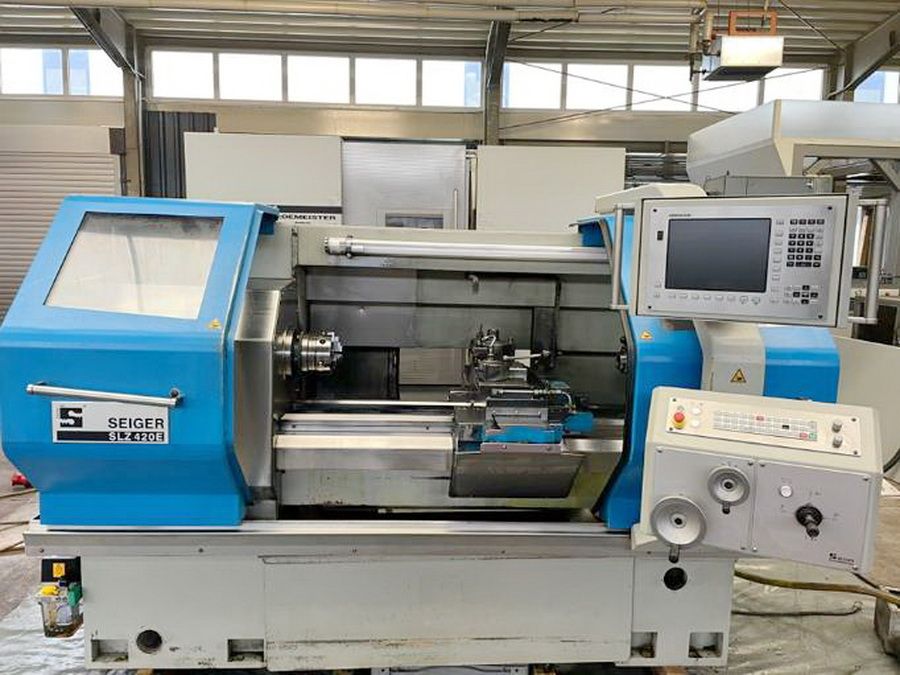

Seiger Manual plus 620 Heidenhain 3600 rpm SLZ 420 E / 1000 2 Axis
Ref :
2791489-3-GO
Condition :
Used
Manufacturer :
Seiger
Controller :
Manual plus 620 Heidenhain
Spindle Speed :
3600 rpm
Model :
SLZ 420 E / 1000
Nb Of Axis :
2 Axis
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Manual plus 620 Heidenhain
Bed width: 350 mm
Turning length: 1000 mm
Swing over bed: 430 mm
Swing over carriage: 220 mm
Usable bar diameter: 80 mm
Spindle speed range: 1–3600 rpm
Spindle power: 9 / 11 kW
Max torque: 200 Nm
Spindle head: DIN 55027 / 6
Spindle diameter (front bearing): 110 mm
Spindle bore: 80 mm
X-axis travel: 230 mm
Z-axis travel: 1000 mm
Rapid traverse X/Z: 10 / 7 m/min
Feed power X/Z: 4 / 5 kN
Tool system: MultiFix
Tool shank size: 20 x 20 mm
Tailstock quill diameter: 70 mm
Tailstock quill stroke: 150 mm
Tailstock taper: MK5
Steady rest range: 12–125 mm
Lubrication system: impulse lubrication (0.1 l/min, 30 bar, 2 dm³ tank)
Machine weight: 3.2 t
Machine dimensions: 2.8 x 2.1 x 1.9 m
