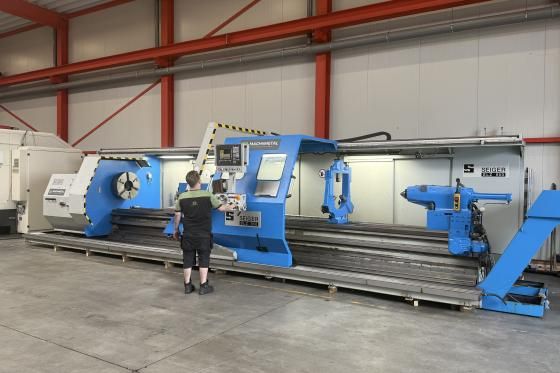

Seiger Siemens 810D Powerline with ShopTurn 1600 rpm SLZ 850 2 Axis

SEIGER SLZ 850
2005

Max swing over bed: 850 mm
Swing over cross slide: 580 mm
Turning length (DBC): 6000 mm
Spindle bore: 130 mm
Spindle power: 52 kW
Bed width: 560 mm
Tailstock spindle diameter: 160 mm
Tailstock stroke: 315 mm
Spindle taper: MK6
Workpiece weight: 7000 kg
Max spindle speed: 1600 rpm
Feed rate X-axis: 4000 mm/min
Feed rate Z-axis: 7000 mm/min
Control: Siemens 810D Powerline with ShopTurn
Tool system: CAPTO (turning and milling)
3rd guideway bed design
Box-type bed with double prism guides
Motorized tailstock
Double chip conveyor
Central lubrication
Fixed steady rest (4x)
Chuck: SCHUNK THW 500-128 3-jaw
Machine dimensions (LxWxH): 9800 x 3100 x 2550 mm
Weight: 14000 kg
Power-on hours: approx. 35841
Spindle hours: approx. 17000
