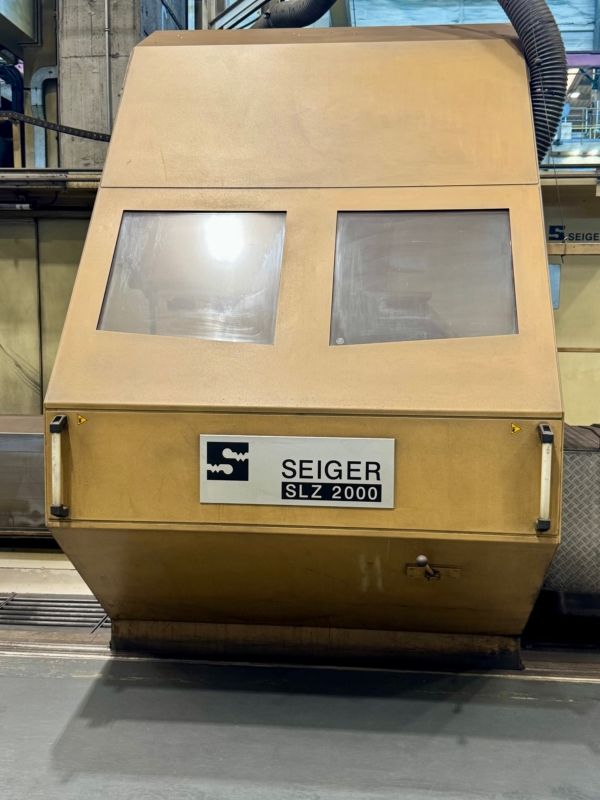

Seiger SINUMERIK 840D pl 450 RPM SLZ 2000 x 4000 2 Axis
Ref :
2795030-3-MT
Condition :
Used
Manufacturer :
Seiger
Controller :
SINUMERIK 840D pl
Spindle Speed :
450 RPM
Model :
SLZ 2000 x 4000
Nb Of Axis :
2 Axis
Year(s) :
2011
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: SINUMERIK 840D pl
Center distance: 4000 mm
Swing over bed: 2000 mm
Swing over cross slide: 1400 mm
Cross slide travel: 760 mm
Bed width: 1350 mm
Tool size: 40 x 40 mm
Spindle bearing diameter: 300 mm
Spindle bore: 120 mm
Spindle speed range: 3 - 450 RPM
Main drive power: 54 / 70 kW
Max spindle torque: 18000 Nm
Tailstock quill diameter: 320 mm
Max workpiece weight between centers without steady rest: 18000 kg
Power supply: 400 V / 50 Hz
Machine weight: 24 t
Machine dimensions: 10.5 x 4.2 x 2.8 m
2 chip conveyors
Documentation
CE marking
