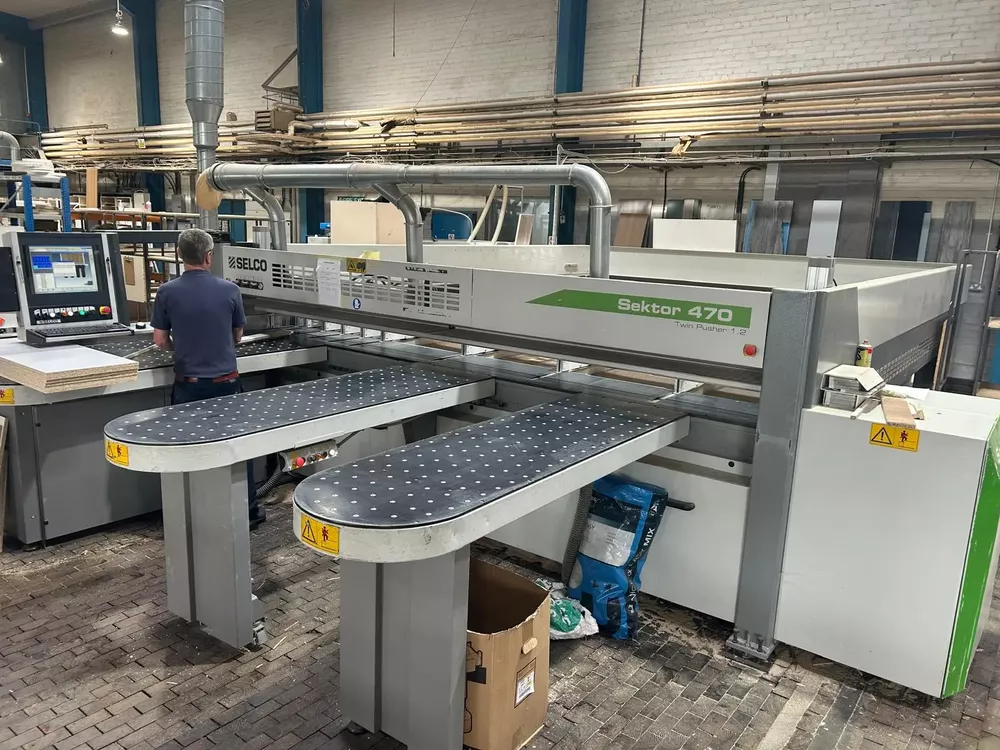

Selco Sektor 470 Twin Pusher 1.2

Max. Panel Width 4 300 mm
Max. Panel Length 4 400 mm
Main Saw Blade Projection 90 mm
Main Saw Motor 11 kW (≈ 15 HP)
Scoring Saw Motor 2.2 kW (≈ 3 HP)
Saw Carriage Speed 1 – 120 m/min
Pusher (Feed) Speed 60 m/min
Number of Pneumatic Grippers 6
Front Support Tables Yes (4 tables standard)
Quick-Change Blade System “Selco Quick Change”
Optional Twin-Pusher Configuration Available (max. cut length up to 3 200 mm)
Control & Software PC-based controller (Win XP), on-board optimization
Approx. Weight ~ 5 400 kg (12 000 lb)
