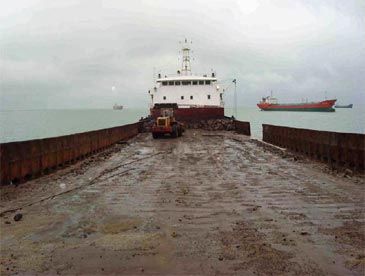

SELF PROPELLED DECK BARGE

SELF PROPELLED DECK BARGE
Year: 2009

Length Overall 84.80 m
Length 80.00 m
Length of Waterline 80.34 m
Beam 17.00 m
Depth 4.00 m
Light Draft 1.096 m
Full-load Draft 2.50 m
Full-load Displacement 2,933.9 tonnes
Light Displacement 1,185.9 tonnes
Reference Eight of Loading Cargo 1,748 tonnes
Max Load Capacity 3,700 tonnes
Hull Material Steel
Deck Material Steel
Number of Deck Layers 1
Number of Transverse Compartment Bulkheads 10
Type of Structure Framework in length and breadth
Class Notation A1 + A2 Offshore
Number of Cabins 1

Main Engines Make/Model Zibo diesel engine Z8070ZLC Z-30
Main Engines Power 218 kW x 2

Right Bow Anchor Type Speke anchor
Right Bow Anchor Weight 1,590 kg
Left Bow Anchor Type Speke anchor
Left Bow Anchor Weight 1,590 kg

Anchor Windlass Make/Model YMA-32
Anchor Windlass Power 22 kW

Right Bow Anchor Chain Diameter 36 mm
Right Bow Anchor Chain Length 247.50 m
Right Bow Anchor Chain Grade AM2
Right Bow Anchor Chain Material M20Mn

Left Bow Anchor Chain Diameter 36 mm
Left Bow Anchor Chain Length 220.00 m
Left Bow Anchor Chain Grade AM2
Left Bow Anchor Chain Material M20Mn

Main Steering Mechanism Type Electrical hydraulic x 2

Life Raft Model KHB-15
Life Raft Capacity 15 persons x 1
Life Ring Model 5556 x 8
Life Throwing Appliances 4

AIS Model SI-30
GPS Model XINLUO-2117
Detector Model DS2008
Magnetic Compass Model CPT-165
Radar Model RDP-104
