1/1

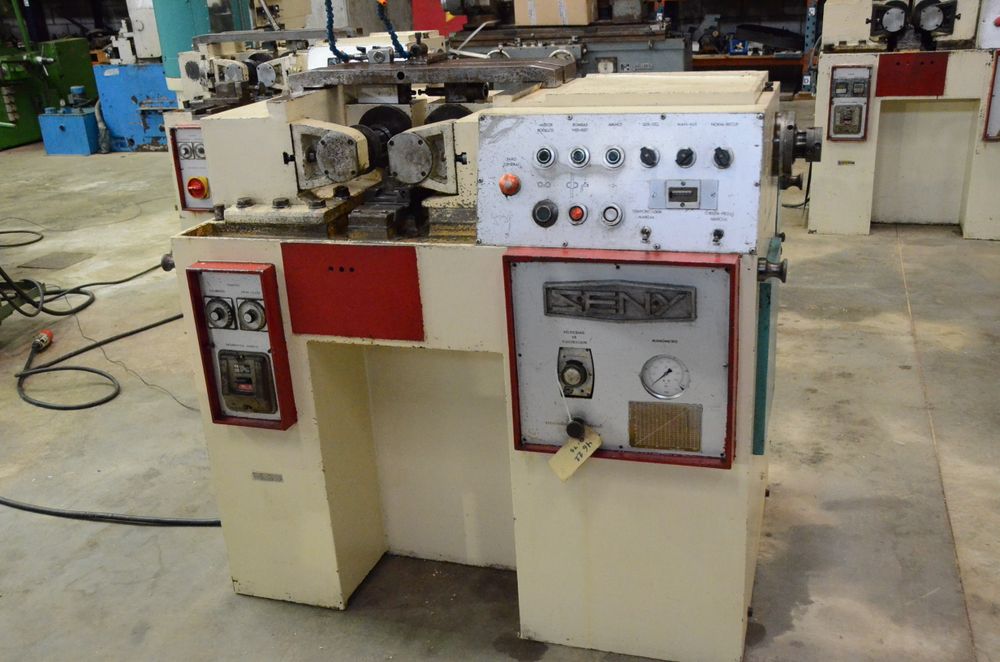

Seny D-75 B Lamination Pressure: 220 kN
Ref :
2810883-3-GO
Condition :
Used
Manufacturer :
Seny
Model :
D-75 B
Short Description :
Lamination Pressure: 220 kN
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Workpiece Diameter: 3–75 mm
Maximum Through Feed: 6 mm
Maximum Grooved Pass: 2.25 mm
Maximum Roller Width: 160 mm
Roller Diameter: 145–200 mm
Roller Shaft Speed: 24 / 30 / 38 / 45 / 62 / 72 / 90 / 114 rpm
Roller Bearing Shaft Diameter: 54 mm Standard
Special Roller Bearing Shaft Diameter: 69.85 mm
Wheelbase: 130–200 mm
Working Travel: 15 mm
Feed Rate: 0.5–6 mm/s
Rolling Time: 0.1–100 s
Pause Time: 0.1–100 s
Main Motor: 5.5 kW
Power Consumption: 8.6 kW
Tank Capacity: 130 L
Weight: Approx. 2100 kg
